| Product Overview

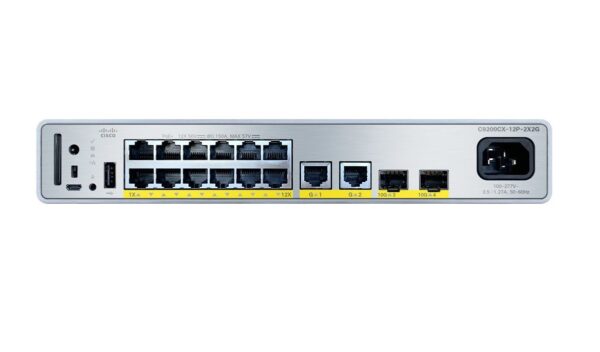

CISCO C9200CX-12P-2X2G-A Catalyst 9200cx – Network Advantage – Switch – Compact – 12 Ports – Managed – Rack-mountable :
Key Features :
Device Type : Switch – 12 Ports – L3 – Managed
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 12 X 10/100/1000 (poe+) + 2 X 1000base-t + 2 X 10 Gigabit Sfp+ (uplink)
Power Over Ethernet (poe) : Poe+
Poe Budget : 240 W
Performance : Switching Capacity: 120 Gbps ¦ Forwarding Rate: 95.23 Mpps ¦ Packet Buffer Size: 6 Mb
Capacity : Virtual Networks: 16 ¦ Ipv4 Routes: 14000 ¦ Direct Ipv4 Routes: 10000 ¦ Indirect Ipv4 Routes: 4000 ¦ Ipv4 Routing Entries: 4000 ¦ Ipv6 Routing Entries: 2000 ¦ Multicast Scale: 1000 ¦ Qos Scale Entries: 1000 ¦ Acl Scale Entries: 1600 ¦ Flexible Netflow Entries: 16000 ¦ Vlan Ids: 4096 ¦ Pvst Instances: 128 ¦ Stp Virtual Ports For Pvst: 13000 ¦ Stp Virtual Ports For Mst: 13000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Yang
Encryption Algorithm : 128-bit Aes
Features : Access Control List (acl) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Fanless, Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Netflow, Energy Efficient Ethernet, Management Information Base (mib), Class Of Service (cos), Flexible Netflow (fnf), 802.1x Authentication, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Switched Port Analyzer (span), Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3at
Ram : 4 Gb
Flash Memory : 8 Gb
Built-in Devices : Rfid Tag
Status Indicators : Power
Expansion / Connectivity :
Interfaces :
12 X 1000base-t Rj-45 Poe+ – 30 W
2 X 1000base-t Rj-45
2 X 10gbase-x Sfp+ Uplink
1 X Usb 2.0
1 X Console (micro-usb)
Expansion Slots :
1 (total) / 1 (free) X Sd Memory Card
Power :
Power Device : Internal Power Supply
Power Provided : 310 Watt
Voltage Required : Ac 100-240 V (50/60 Hz)
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
