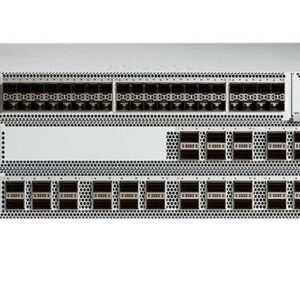

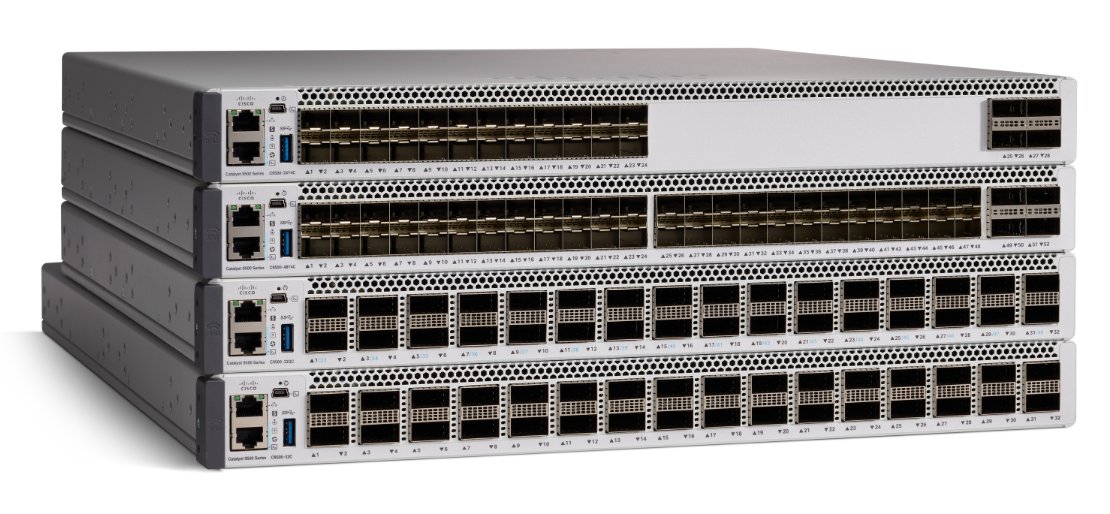

The CISCO Catalyst 9500 Series Switches Are The Next Generation Of Enterprise-class Core And Aggregation Layer Switches, Supporting Full Programmability And Serviceability. Based On An X86 Cpu, The Catalyst 9500 Series Is CISCOS Lead Purpose-built Fixed Core And Aggregation Enterprise Switching Platform, Built For Security, Iot, And Cloud. The Catalyst 9500 Series Is The Industrys First Purpose-built 40 Gigabit Ethernet Line Of Switches Targeted For The Enterprise Campus.
Specifications:
Description : CISCO Catalyst 9500 – Network Essentials – Switch – 24 Ports – Managed – Rack-mountable
Device Type : Switch – 24 Ports – L3 – Managed – Stackable
Enclosure Type: Rack-mountable 1u
Subtype : 25 Gigabit Ethernet
Ports : 24 X 25 Gigabit Sfp28
Interfaces : 24 X 25gbit Lan Sfp28 ¦ 4 X 100gbit Lan ¦ 2 X Usb 3.0
Performance : Switching Capacity (full Duplex): 1.6 Tbps ¦ Forwarding Rate: 1 Bpps
Capacity : Routing Table Entries: 80000 ¦ Indirect Ipv4 Routes: 212000 ¦ Host Ipv4 Routes: 90000 ¦ Indirect Ipv6 Routes: 212000 ¦ Host Ipv6 Routes: 90000 ¦ Multicast Scale: 32000 ¦ Qos Acl Scale: 16000 ¦ Security Acl Scale: 270000 ¦ Fnf Entries: 96000 ¦ Vlan Ids: 4000 ¦ Switched Virtual Interfaces (svis): 4000
Routing Protocol: Ospf, Rip-1, Rip-2, Bgp, Eigrp, Igmp, Vrrp, Msdp, Policy-based Routing (pbr), Ripng
Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Netconf, Restconf
Power Device : Internal Power Supply – Hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1
Power Provided: 650 Watt
Voltage Required: Ac 120/230 V (50 – 60 Hz)
Dimensions (wxdxh): 17.5 In X 18 In X 1.7 In
Weight : 20.99 Lbs
Condition : New Factory Sealed.
Availability: In Stock.
Mfg Warranty: None.
Our Warranty: 90 Days.
