| Product Overview

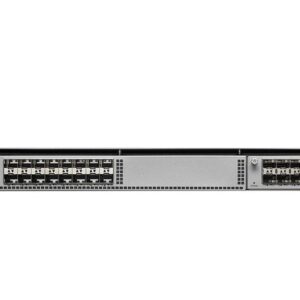

The CISCO Catalyst 4500-x Series Switch Is A Fixed Aggregation Switch Designed For Space-constrained Campus Networks. It Offers Best-in-class Scalability, Simplified Network Virtualization, And Integrated Network Services. It Supports Many-to-one (virtual Switching System [vss]) And One-to-many (CISCO Easy Virtual Networks [evn]) Virtual Networks, Enables Emerging Applications By Integrating Multiple Network Services, And Meets Business Growth Objectives With Unparalleled Scalability.
Important Advancements Available In The CISCO Catalyst 4500-x Series Include:
Platform Scalability: Provides Switching Capability Of Up To 800 Gbps, With Vss Technology, This Capacity Can Scale To 1.6 Tbps. Modular Uplink With Auto-detect 10 Gigabit Ethernet And 1 Gigabit Ethernet Ports Make This An Investment That Is Future-proof.
High Availability: Provides The Network Availability Required By Enterprise Applications That Are Business-critical By Utilizing Complete High-availability Features Like Evn And Vss. Moreover, Cutting-edge Features Like Dual Hot-swappable Fans And Power Supply With Ac To Dc And Dc To Ac Failover Eliminate Network Single Points Of Failure.
Application Monitoring: Improved Application Monitoring With Eight Line Rate Bidirectional Switched Port Analyzer (span)/remote Switched Port Analyzer Ports (rspan) And Flexible Netflow. Furthermore, Hosting Third-party Apps Is Made Possible By CISCO Ios® Xe Software.
Security: Protection Against Denial-of-service Attacks: Strong Control Plane Policing (copp) And Support For CISCO Trustsec Technology.
Simplified Operations: Zero-touch Deployment Of New Switches And Stacks In Campus And Branch Networks Is Made Possible By Support For Smart Install Director, Which Offers A Single Point Of Management.
Key Features :
Device Type : Switch – 16 Ports
Enclosure Type : Rack-mountable
Ports : 16 X 10 Gigabit Sfp+
Performance:
Throughput : 800 Gbps
Ipv4 Routing : 250 Mpps
Ipv6 Routing : 125 Mpps
Capacity :
Ipv4 Forwarding Table Entries : 64000
Ipv6 Forwarding Table Entries : 32000
Netflow Entries : 128000
Virtual Interfaces (vlans) : 4094
Igmp Groups : 32000
Multicast Entries (ipv4) : 24000
Multicast Entries (ipv6) : 12000
Arp Entries : 47000
Spanning Tree Protocol Instances : 10000
Qos Hardware Queues : 64
Qos Hardware Entries : 128000
Acl Entries : 131072
Mac Address Table Size : 55k Entries
Jumbo Frame Support : 9216
Remote Management Protocol : Rmon 1, Rmon 2
Features : Layer 2 Switching, Vlan Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Redundant Hot Swappable Fans
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s
Power Supply Information For CISCO Catalyst WS-C4500X-16SFP+:
Power Supply Feature: Support In The 4500-x Series
Ac Power Max Rating: 750w
System Power Consumption: 330w Nominal/400w Max
Input-voltage Range And Frequency: Ac 100 To 240 Vac 50-60 Hz/dc -72 Vdc To -40 Vdc
Dc Power Max Rating: 750w
Ac To Dc Failover And Vice Versa: Yes
Total Output Btu (note: 1000 Btu/hr = 293w): 1122 Btu/hr (330 W) Nominal/1365 Btu/hr (400 W) Max
Input Current: Ac 11a @ 110vac, 6 A @ 200vac/dc 25a Max
Output Ratings: 12v @ 62a & 3.3v @ 3a
Output Holdup Time: Ac = 16 Ms, Dc = 4 Ms @ Maximum Load
Power-supply Input Receptacles, Ac Iec 60320 C15/dc Custom Detachable Screw Terminal (supplied)
Power Cord Rating: Ac 15a/dc 25a
Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 90 Days.
