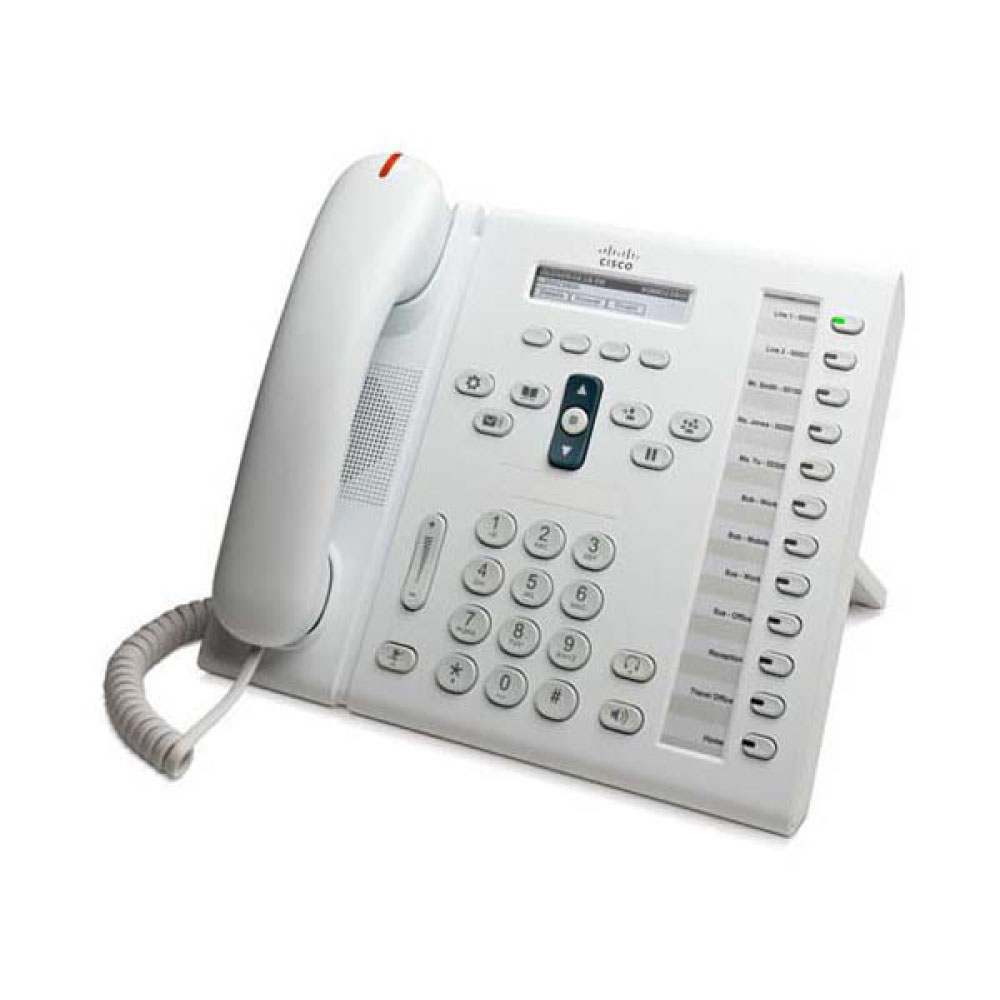

Cisco CP-6961-W-K9 Unified VOIP Phone

Lighted hold key

The key lights when pressed to put a call on hold and stays lit until the held call has been resumed, or flashes if one call is held while another is engaged; the key is dark when no calls are on hold.

Lighted menu key

The key lights when pressed to access voicemail messages, call logs, network settings, user preferences, corporate directories, and XML services; it stays lit while menu items are active.

Co-branding

Co-branding button allows customers to include their logo on the Cisco Unified IP Phone 6900 series phones. Cisco has approved third-party vendors to produce the buttons.

Speakerphone

Full-duplex speakerphone allows for flexibility in placing and receiving calls.

Lighted message waiting indicator

The key lights when there is voicemail, and the light is visible on both the phone chassis and the handset; it stays lit until you process your voicemail.

Graphical display

A 396 x 81 pixel-based, anti-glare, monochrome display with white backlighting provides scrollable access to calling features and text-based XML applications.

Four soft key buttons and a scroll toggle bar

Your calling options are dynamically present; the scroll toggle bar allows easy movement through the displayed information.

Network features

Network features include Cisco Discovery Protocol and IEEE 802.1 p/q tagging and switching.

Ethernet switch

The phone has a 10/100Base-T Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for connecting a downstream Ethernet device such as a PC.

Volume control

A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer.

Dual-position foot stand

The display is easy to view and the buttons and keys are easy to use; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone.

Multiple ring tones

The phone offers seven user-adjustable ring tones.

American Disabilities Act (ADA) features

The hearing-aid-compatible (HAC) handset meets the requirements set by the ADA; it also meets ADA HAC requirements for a magnetic coupling to approved hearing aids. The phone dialing pad also complies with ADA standards.

Voice quality

Comfort-noise generation and voice-activity-detection (VAD) programming is provided on a system basis.
