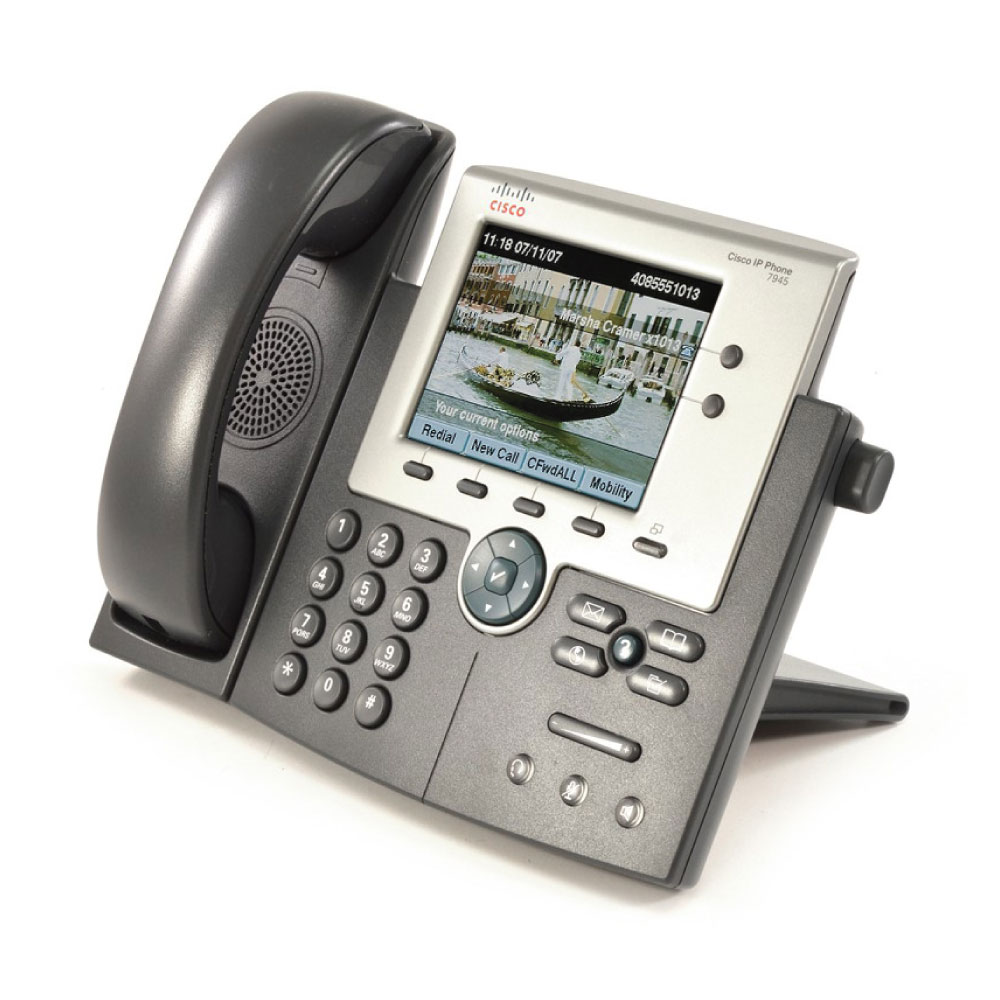

Cisco CP-7945G Unified IP Phone

In Stock
Highlights:

Cisco Unified IP Phone 7945G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color display, and an integrated Gigabit Ethernet port. It addresses the needs of transaction-type workers with significant phone traffic and the needs of those working with bandwidth-intensive applications on colocated PCs. This IP phone includes a large, backlit, easy-to-read color display for easy access to communication information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed, and presence information.

Compare
MFR # CP-7945G SKU: CP-7945G Category: Tag: Brand:
Description

Cisco CP-7945G Unified IP Phone

It also accommodates Extensible Markup Language (XML) applications that take advantage of the display. The phone provides direct access to two telephone lines (or combination of lines, speed dials, and direct access to telephony features), four interactive soft keys that guide you through call features and functions, and an intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity wide band audio are standard, as is a built-in headset connection.



Additional information
Weight 3.5 lbs
Dimensions 6 × 10.5 × 8.2 in
Product Type

VoIP phone

Body Color

Silver, dark gray

Display

5-inch (12.5 cm) graphical TFT color display, 16-bit color depth, 320 x 240 effective pixel resolution, with backlight. Allows for greater flexibility of features and applications, and significantly expands the information viewed when using features such as Services, Information, Messages, and Directory. Display also supports localization requiring double-byte Unicode encoding for fonts.

Wideband Audio

Support for wideband (G.722 codec, adherence to TIA 920), including handset, headset, and speakerphone.

Call Services

Voice Mail, Caller ID, Call Forwarding, Call Transfer, Call Hold

Dialer Location

Base

Additional Features

On-hook dialing

Main Features

Multiple VoIP protocol support, integrated Ethernet switch

VoIP Protocols

SCCP, SIP

Voice Codecs

G.722, G.729a, G.729ab, G.711u, G.711a, iLBC

Function Buttons

Speakerphone button, directory button, navigator key, headset button, mute button

Quality of Service

IEEE 802.1Q (VLAN), IEEE 802.1p

Network Protocols

TFTP

Network Ports Qty

2 x Ethernet 10Base-T/100Base-TX/1000Base-T

Firmware Upgradable

Yes

VoIP

Yes

Network Features

Class 3 PoE

Dialer Type

Keypad

Conference Call Capability

Yes

Placing / Mounting

Wall-mountable, table-top
