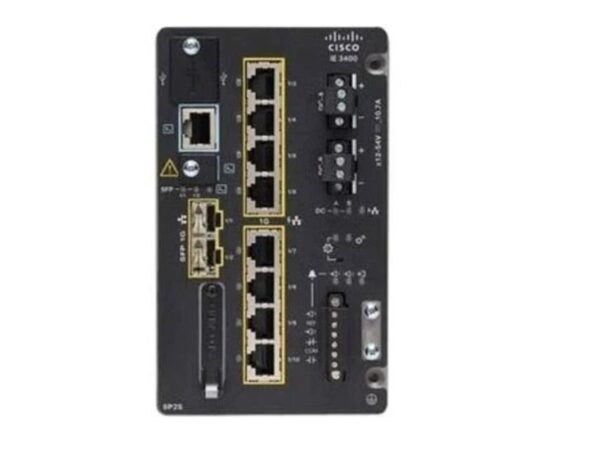

CISCO IE-3400-8P2S-E Catalyst Ie3400 Rugged Series – Network Essentials – Switch With 8 Ge Poe/poe+, 2 Ge Sfp Port :
Key Features :
Device Type : Switch – 10 Ports – Managed
Enclosure Type : Din Rail Mountable
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000 + 2 X Gigabit Sfp
Capacity : Queues: 8 Igmp Groups: 1000 Vlan Ids: 256 Stp Instances: 128 Acl: 1500
Mac Address Table Size : 8k Entries
Routing Protocol : Igmpv2, Igmp, Igmpv3, Mstp, Rstp, Stp
Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Telnet, Snmp 3, Http, Tftp, Ssh, Scp, Ntp
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Dhcp Support, Bootp Support, Arp Support, Igmp Snooping, Syslog Support, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (stp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Radius Support, Dhcp Server, Dynamic Arp Inspection (dai), Per-vlan Spanning Tree Plus (pvst+), Uni-directional Link Detection (udld), Ipv4 Support, Fanless, Lacp Support, Lldp Support, Dhcp Relay, Port Security, Remote Switch Port Analyzer (rspan), Management Information Base (mib), 802.1x Authentication, Precision Time Protocol (ptp), Igmp Filtering, Ip Source Guard, Resilient Ethernet Protocol (rep), Smartport Technology, Internet Control Message Protocol (icmp), Cip Sync (ieee 1588), Igmp Querier, Voice Vlan, Guest Vlan, User Datagram Protocol (udp), Vlan Trunking Protocol (vtp) V.3, Bpdu Guard, Dying Gasp, Vlan Trunking Protocol (vtp) V.2
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 1588v2
Ram : 4 Gb
Flash Memory : 1.5 Gb
Built-in Devices : Sd Card Reader
Expansion / Connectivity :
Interfaces :
8 X 10/100/1000 Base-t Rj-45
2 X 1000base-x Sfp
1 X Serial (rs-232) Rj-45
1 X Mini-usb Type B
2 X Alarm
1 X Alarm
Expansion Slots :
1 (total) / 1 (free) X Sd Memory Card
Power :
Power Device : Internal Power Supply
Power Redundancy : Yes
Voltage Required : Dc 9.6 – 60 V
Electric Current Required : 5.4 A
Power Consumption Operational : 39 Watt
Miscellaneous :
Mtbf : 549,808 Hours
Compliant Standards : En55024, En 61000-6-1, En 61000-4-4, En 61000-4-2, En 61000-4-3, En 61000-4-6, Ices-003 Class A, En 61000-4-5, En 61000-6-2, En 61000-4-8, Iec 60950-1, En 61000-6-4, Iec 60068-2-30, Iec 60068-2-27, En 61326-1, En 61000-4-16, En 61000-4-29, Iec 60068-2-14, Iec 60068-2-78, En 50121-4, Vcci Class A, Cispr 11 Class A, En 61000-4-10, En 61000-4-18, Iec 61850-3, Fcc Cfr47 Part 15 B Class A, Ieee 1613, Cns 13438 Class A, En 300 386, Kn35, Ul/csa60950-1, As/nzs Cispr 32 Class A, Kn32 Class A, Iec 62368-1, Ieee 1588, En 60068-2-52, En 60068-2-60, En 60079-15, Cb 60950-1, Iec 60079-0, Iec 60079-15, En 60079-0, En 55032/cispr 32 Class A, Cispr 35, En 61000-4-17, Ul 121201, Ul/csa/en 62368-1, En 61850-3, Ul/csa 61010-2-201, Iec/en 61010-2-201, Ul/csa 60079-0, Ul/csa 60079-15
Condition : New Factory Sealed
Availability : In Stock.
Our Warranty : 90 Days
