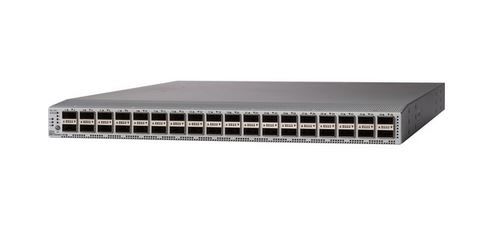

CISCO N9K-C9336C-FX2 Nexus 9336c-fx2 Switch 36 Ports Managed Rack-mountable.
Key Features:
– Device Type: Switch – 36 Ports – L3 – Managed
– Enclosure Type: Front And Side To Back Rack-mountable 1u
– Ports: 36 X 100 Gigabit Qsfp28 / 40 Gigabit Qsfp28
– Performance: Bandwidth: 7.2 Tbps, Bandwidth: 2.8 Bpps
– Capacity: Multiple Spanning Tree Protocol Instances: 64, Hsrp Groups: 490, Acl Entries (ingress): 5000, Maximum Number Of Links In A Port Channel: 32, Maximum Number Of Port Channels: 512, Ecmp Paths: 64, Virtual Routing And Forwarding (vrf) Instances: 16000, Vlans Supported: 3967, Acl Entries (egress): 2000, Igmp Snooping Groups: 32000, Multicast Routes: 32000, Nat Entries: 1023
– Routing Protocol: Ospf, Rip, Rip-2, Bgp, Eigrp, Hsrp, Pim-sm, Msdp, Ecmp, Mpls
– Features: Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Port Exhaust, Virtual Portchannel (vpc) Technology, Macsec Support, Virtual Extensible Lan (vxlan), Source-specific Multicast (ssm), Ethernet Virtual Private Network (evpn), 40mb System Buffer, 3 Fan Trays, Power On Auto Provisioning (poap)
Interfaces:
– 36 X 100gbit/40gbit Lan Qsfp28
– 1 X Management Rj-45
– 1 X Management Sfp+
– 1 X Usb
– 1 X Serial (rs-232)
Power:
– Power Device: Internal Power Supply (not Installed)
– Max Supported Qty: 2
– Power Redundancy: Optional
– Voltage Required: Ac 120/230 V (50/60 Hz)
– Power Consumption Operational: 777 Watt
Condition : Refurbished.
Availability: In Stock.
Warranty : 90 Days.
