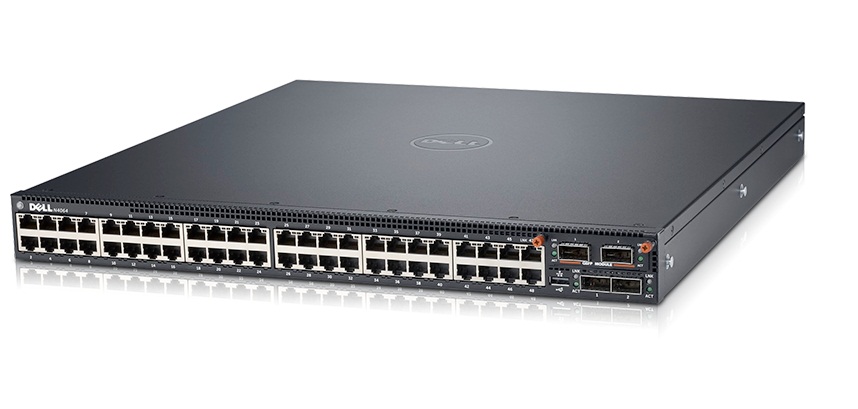

DELL 210-ABVU Networking N4064 Switch 48 Ports Managed Rack-mountable With Dual Power And Rails
Key Features :
Device Type : Switch 48 Ports L3 Managed Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 48 X 10 Gigabit Ethernet + 2 X 40 Gigabit Qsfp+
Performance : Switching Fabric Bandwidth: 1.28 Tbps Forwarding Performance: 952 Mpps
Capacity : Mac Addresses: 131072 Ipv4 Routes (static): 1024 Ipv6 Routes (static): 1024 Ipv4 Routes (dynamic): 8160 Ipv6 Routes (dynamic): 4096 Maximum Member Ports Per Lag: 8 Maximum Dynamic Ports Per Switch Stack: 144 Lag Groups: 128 Priority Queues Per Port: 8 Ospf Routes: 8160 Rip Routes: 512 Ecmp Next Hops Per Route: 4 Ecmp Groups: 1024 Vlan Routing Interfaces: 128 Vlans Supported: 4094 Multicast Entries (ipv4): 512 Multicast Entries (ipv6): 256 Arp Entries: 6144 Ndp Entries: 400 Acl: 100 Maximum Rules Per Acl: 1023 Max Acl Rules System-wide: 3072 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 2047 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 131072 Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Encryption Algorithm : Aes, Ssl, Tls 1.0
Authentication Method : Radius, Tacacs+, Ldap
Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dai), Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.1qbb, Ieee 802.1qaz
Ram : 2 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces :
48 X 10gbit Lan – Rj-45
2 X 40gbit Lan – Qsfp+
1 X Gigabit Lan – Rj-45 – Management
1 X Serial (rs-232) – Rj-45 – Management
1 X Usb – Type A
Expansion Slots :
1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply – Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Yes
Power Provided : 460 Watt
Power Consumption Operational : 395 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days.
