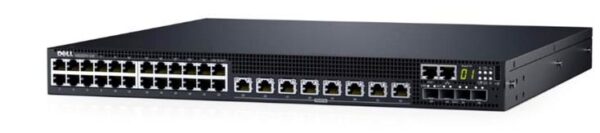

DELL 210-AGKX Emc Networking N3132px-on Switch 32 Ports Managed Rack-mountable
Key Features :
Device Type : Switch 32 Ports L3 Managed Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (poe) + 8 X 100/1000/2.5g/5g (poe) + 4 X 10 Gigabit Sfp+
> Power Over Ethernet (poe) : Poe
Performance : Switching Fabric Bandwidth: 328 Gbps , Forwarding Performance: 428 Mpps
Capacity : Mac Addresses: 32000 , Aggregated Links (dynamic): 144 , Lag Groups: 128 , Queues Per Port: 8 , Vlans Supported: 4094 , Arp Entries: 6144 , Ndp Entries: 400 , Max Acl Rules System-wide: 4096 , Acl: 100 , Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 , Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 , Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 , Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 , Multicast Entries (ipv4): 1536 , Multicast Entries (ipv6): 512 , Ospf Routes: 8160
Mac Address Table Size : 32000 Entries
Routing Protocol : Igmpv2, Igmp, Pim-sm, Pim-dm, Igmpv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2
Encryption Algorithm : Aes, Ssl, Tls 1.0
Authentication Method : Radius, Tacacs+, Ldap
Features : Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
Ram : 2 Gb
Flash Memory : 512 Mb
Expansion / Connectivity :
Interfaces :
24 X Gigabit Lan – Rj-45 – Poe
8 X 5gbit Lan – Rj-45 – Poe
4 X 10gbit Lan – Sfp+
1 X 1000base-t – Rj-45 – Management
1 X Usb – Type A
Power :
Power Device : Internal Power Supply – Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Provided : 1100 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days
