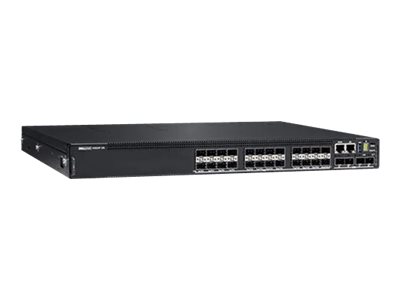

Dell 210-ASQH EMC PowerSwitch N3224F-ON – switch – 24 ports – managed – rack-mountable

$1,190.00

41% Off
Close
Price Summary
  • $2,000.00
  • $1,190.00
  • 41%
  • $1,190.00
  • Overall you save $810.00 (41%) on this product
In Stock
Compare
MFR # 210-ASQH SKU: 210-ASQH Category: Brand:
Description

DELL 210-ASQH Emc N3224f-on Powerswitch – Switch – 24x 1gb Sfp 4x 10gb Sfp+ 2x 100gb Qsfp28 Ports – Managed – Rack-mountable, 1x 550w Ac Psu Included With Os6 :

Key Features :

  • Device Type: Switch – 24 Ports – L3 – Managed – Stackable
  • Enclosure Type: Front To Back Airflow Rack-mountable 1u
  • Subtype: 10 Gigabit Ethernet
  • Ports: 24 X Gigabit Sfp + 4 X 10 Gigabit Sfp+ + 2 X 100 Gigabit Qsfp28
  • Performance: Switching Capacity: 528 Gbps ¦ Forwarding Rate: 733 Mpps
  • Capacity : Ipv4 Routes (static): 1024 ¦ Ipv6 Routes (static): 1024 ¦ Ipv4 Routes (dynamic): 8160 ¦ Ipv6 Routes (dynamic): 4096 ¦ Maximum Member Ports Per Lag: 8 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Lag Groups: 128 ¦ Ospf Routes: 8158 ¦ Rip Routes: 512 ¦ Ecmp Next Hops Per Route: 16 ¦ Ecmp Groups: 1024 ¦ Vlan Routing Interfaces: 128 ¦ Vlans Supported: 4094 ¦ Multicast Entries (ipv4): 1023 ¦ Multicast Entries (ipv6): 1021 ¦ Arp Entries: 6144 ¦ Ndp Entries: 2560 ¦ Acl: 100 ¦ Maximum Rules Per Acl: 1023 ¦ Max Acl Rules System-wide: 3914 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 511 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 506 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Vlan Interfaces With Acls Applied: 24
  • Mac Address Table Size: 32k Entries
  • Routing Protocol: Ospf, Rip, Rip-2, Igmpv2, Igmp, Ospfv2, Igmpv3, Ospfv3, Ipv4-to-ipv6 Multicast
  • Remote Management Protocol: Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
  • Encryption Algorithm: Md5, Aes, Ssl, Tls
  • Authentication Method: Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax
  • Ram: 4 Gb
  • Flash Memory: 8 Gb

    Expansion / Connectivity :

    interfaces:

  • 24 X Gigabit Lan Sfp
  • 4 X 10gbit Lan Sfp+
  • 1 X 10/100/1000 Base-t Rj-45 Management
  • 2 X 100gbit Lan Qsfp28 Stacking
  • 1 X Usb Type A
  • 1 X Micro-usb 2.0 Type B Console
  • 1 X Serial (rs-232) Rj-45 Console

    Power :

  • Power Device: Internal Power Supply – Hot-plug
  • Installed Qty: 1
  • Max Supported Qty: 2
  • Power Redundancy: Optional
  • Power Redundancy Scheme: 1+1 (with Optional Power Supply)
  • Power Provided: 550 Watt
  • Power Consumption Operational: 224 Watt
  • 80 Plus Certification: 80 Plus Platinum
  • Firmware Version : Os6

    Condition: Refurbished.

    Availability: In Stock.

    Our Warranty: 90 Days.
