General Information:
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number: 361011-001
Manufacturer Website Address : WWW.HPE.COM

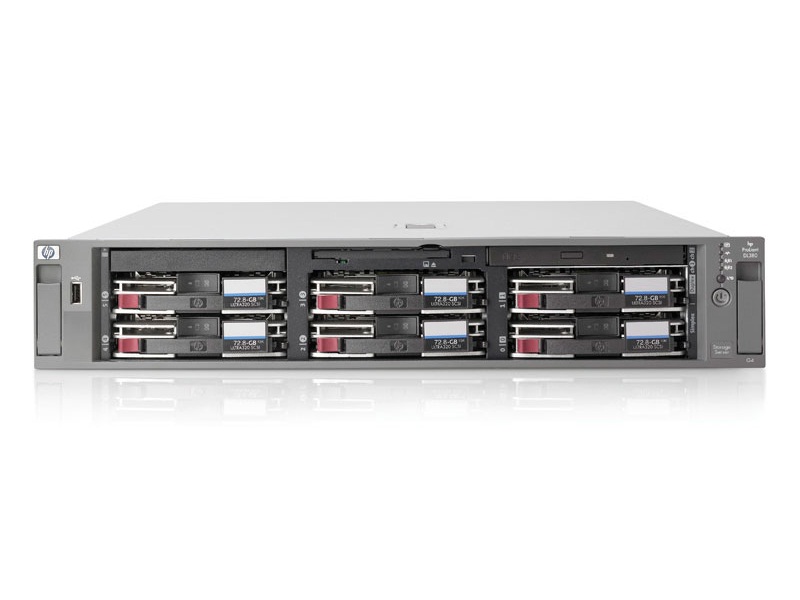

Product Name: Proliant Dl380 G4 – 2u Rack Server ( High Performance Model)
Processor & Chipset :
Cpu : Intel Xeon 3.6 Ghz
64-bit Computing : Yes
Cpu Qty : 2
Max Cpu Qty : 2
Processor Main Features : Intel Extended Memory 64 Technology
Chipset Type : Intel E7520
Front Side Bus : 800 Mhz
Cache Memory :
Cache Memory Type : L2 Cache
Installed Size : 2 Mb
Cache Per Processor : 1 Mb
Memory:
Installed Size : 2 Gb / 16 Gb (max)
Technology : Ddr2 Sdram – Advanced Ecc
Effective Memory Speed : 400 Mhz
Rated Memory Speed : 400 Mhz
Memory Specification Compliance : Pc2-3200
Form Factor : Dimm 240-pin
Slots : 6 (total) / 4 (empty)
Features : Registered
Upgrade Rule : 2 Modules At A Time
Hard Drive :
Hard Drive : None
Storage Controller :
Type : 1 X Raid – Integrated – Pci-x
Controller Interface Type : Ultra320 Scsi
Storage Controller Name : Smart Array 6i Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 128 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrated
Controller Interface Type : Ide/ata
Optical Storage :
Type : Dvd-rom Dvd – Ide
Read Speed : 24x (cd) / 8x (dvd)
Floppy Drive :
Type : 3.5 1.44 Mb Floppy
Display & Graphics Controller:
Graphics Processor : Ati Rage Xl
Video Memory : 8 Mb Sdram
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Interface (bus) Type : Pci-x
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity :
Expansion Bays Total (free) :
6 (total) / 6 (free) X Hot-swap 3.5 X 1/3h
1 (total) / 0 (free) X External 3.5 Slim Line
1 (total) / 0 (free) X External 5.25 Slim Line
Expansion Slots Total (free) :
2 (total) / 0 (free) X Cpu
6 (total) / 4 (free) X Dimm 240-pin
2 (total) / 2 (free) X Pci-x / 100 Mhz
1 (total) / 1 (free) X Pci-x / 133 Mhz
Interfaces :
1 X Serial – Rs-232 – 9 Pin D-sub (db-9).
1 X Mouse – Generic – 6 Pin Mini-din (ps/2 Style).
1 X Keyboard – Generic – 6 Pin Mini-din (ps/2 Style).
1 X Display / Video – Vga – 15 Pin Hd D-sub (hd-15).
1 X Storage – Ultra320 Scsi – 68 Pin Vhdci (mini-centronics).
2 X Network – Ethernet 10base-t/100base-tx/1000base-t – Rj-45
1 X Management – Hp Ilo – Rj-45
3 X Hi-speed Usb – 4 Pin Usb Type A
Miscellaneous :
Compliant Standards :
Acpi 2.0
Power :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 575 Watt
Dimensions & Weight:
Width : 17.5 In
Depth : 26 In
Height : 3.4 In
Weight : 44.97 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
