General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 459960-005
Manufacturer Website Address : WWW.HPE.COM

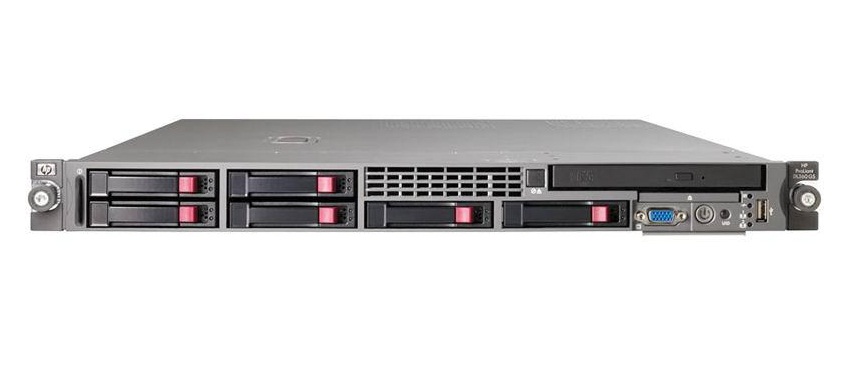

Product Name : Proliant Dl360 G5 Server – 2-way 1u Rack Server ( Smart Buy)
Processor & Chipset:
Cpu : Intel Xeon E5420 / 2.5 Ghz
Number Of Cores : Quad-core
Cpu Qty : 2
Max Cpu Qty : 2
64-bit Computing : Yes
Cpu Upgradability : Upgradable
Cpu Socket : Lga771 Socket
Chipset Type : Intel 5000p
Front Side Bus : 1333 Mhz
Cache Memory :
Type : L2 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb ( 2 X 4mb (4mb Per Core Pair) )
Memory:
Installed Size : 4 Gb / 64 Gb (max)
Technology : Ddr2 Sdram – Advanced Ecc
Effective Memory Speed : 667 Mhz
Rated Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-dimm 240-pin
Slots : 8 (total) / 6 (empty)
Features : Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features : 2 X 2 Gb
Upgrade Rule : 2 Modules At A Time
Storage & Optical Storage :
Hard Drive : None
Optical Drive : Cd-rw / Dvd-rom Combo Cd-rw / Dvd – Ide
Storage Controllers :
Type : 1 X Raid – Plug-in Card – Pcie X4
Controller Interface Type : Sata 1.5gb/s / Sas
Storage Controller Name : Smart Array P400i With 256mb Bbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size : 256 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrated
Controller Interface Type : Ide/ata
Display & Graphics :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Interface (bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 2 Standard
Features : Wake On Lan (wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansions & Connectivity :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External 5.25 Slim Line
4 (total) / 4 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 0 (free) X Cpu
8 (total) / 6 (free) X Fb-dimm 240-pin
1 (total) / 1 (free) X Pcie X8 – Low-profile
1 (total) / 1 (free) X Pcie X8 – Full-length, Full-height
Interfaces & Ports :
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X Serial
1 X Vga
4 X Usb (1 Front, 2 Rear, 1 Internal)
2 X Lan (gigabit Ethernet)
1 X Hp Ilo
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Disk Configuration Lock
Diskette I/o Control
Serial Port I/o Control
Compliant Standards :
Acpi 1.0b
Manufacturer Selling Program :
Hp Smart Buy
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 700 Watt
Dimensions & Weight :
Width : 16.8 In
Depth : 27.8 In
Height : 1.7 In
Weight : 31.97 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
