General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 470064-511
Manufacturer Website Address : WWW.HPE.COM

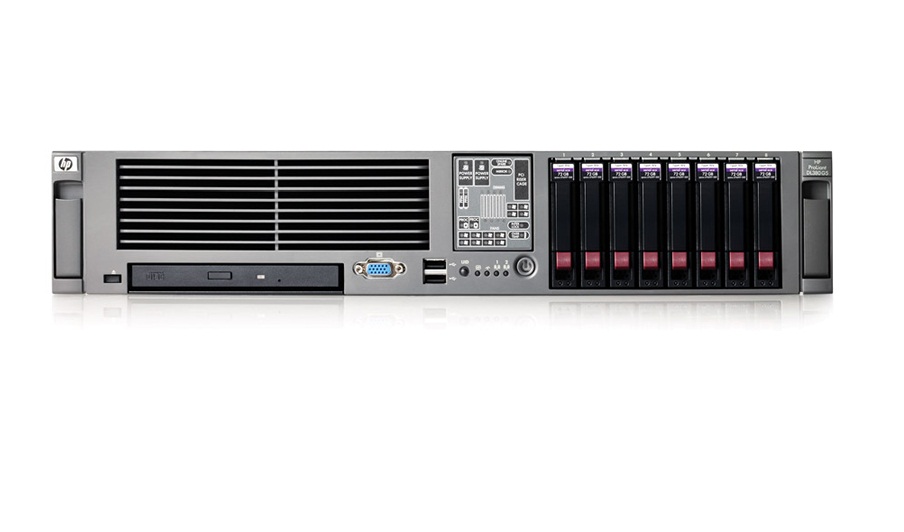

Product Name : Proliant Dl380 G5 – 2-way 2u Rack Server ( Smart Buy Model)
Processor & Chipset :
Cpu : Intel Xeon E5345 / 2.33 Ghz
Number Of Cores : Quad-core
Cpu Qty : 1
Max Cpu Qty : 2
Front Side Bus : 1333 Mhz
64-bit Computing : Yes
Chipset Type : Intel 5000p
Cpu Upgradability : Upgradable
Cache Memory :
Installed Size : L2 Cache – 8 Mb
Cache Per Processor : 8 Mb (2 X 4mb (4mb Per Core Pair))
Memory :
Installed Size : 2 Gb / 32 Gb (max)
Technology : Ddr2 Sdram – Advanced Ecc
Effective Memory Speed : 667 Mhz
Rated Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-dimm 240-pin
Slots : 8 (total) / 6 (empty)
Features : Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features : 2 X 1 Gb
Storage & Optical Storage :
Hard Drive: None
Optical Drive : Cd-rw / Dvd-rom Combo Cd-rw / Dvd – Ide
Storage Controller :
Storage Controller Type: 1 X Raid – Plug-in Card – Pci Express X8
Controller Interface Type: Sata 1.5gb/s / Sas
Storage Controller Name: Smart Array P400 With 256mb Bbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6
Buffer Size: 256 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrated
Controller Interface Type : Ide/ata
Display & Graphics :
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Sdram
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Interface (bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 2 Standard
Features : Wake On Lan (wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
I/o Expansions :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External 5.25 Slim Line
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 1 (free) X Cpu
8 (total) / 6 (free) X Fb-dimm 240-pin
3 (total) / 3 (free) X Pcie X8 (x4 Mode)
2 (total) / 2 (free) X Pcie X16 (x8 Mode)
Interfaces & Ports :
1 X Mouse – Ps/2 Port
1 X Keyboard – Ps/2 Port
2 X Vga 2 (1 Front, 1 Back)
2 X Rj-45 Network
1 X Ilo Remote Management
1 X 9-pin D-sub (db-9) Serial
5 X 4-pin Type A Usb 2.0 (2 Front, 2 Back, 1 Internal)
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Disk Configuration Lock
Diskette I/o Control
Parallel Port I/o Control
Serial Port I/o Control
Quicklock
Compliant Standards :
Acpi 2.0
Manufacturer Selling Program :
Hp Smart Buy
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
Dimensions & Weight :
Width : 17.5 In
Depth : 26 In
Height : 3.4 In
Weight : 44.97 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
