General Information:
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number: 594869-001
Manufacturer Website Address : WWW.HPE.COM

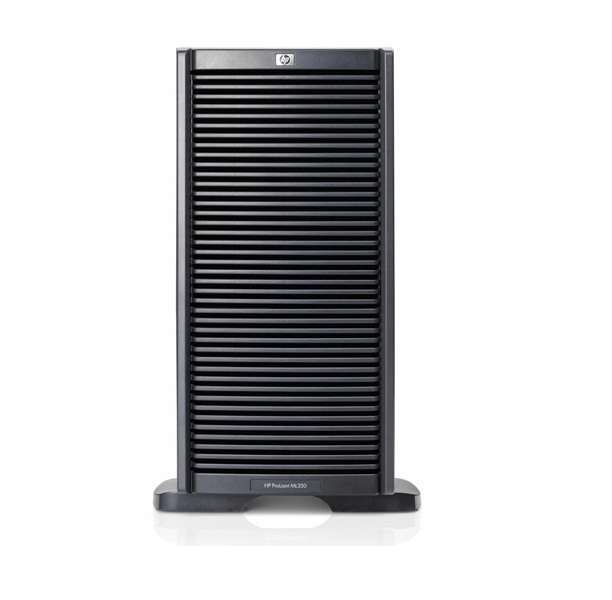

Product Name: Proliant Ml350 G6 – 2-way 5u Tower Server ( Base Model)
Processor & Chipset :
Cpu : Intel Xeon E5620 / 2.4 Ghz
Max Turbo Speed : 2.66 Ghz
Number Of Cores : Quad-core
64-bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Chipset Type : Intel 5520
Cache Memory :
Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
Memory :
Installed Size : 6 Gb / 144 Gb (max)
Technology : Ddr3 Sdram
Effective Memory Speed : 1333 Mhz
Rated Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-pin
Slots : 18 (total) / 15 (empty)
Features : Registered
Configuration Features : 3 X 2 Gb
Ram Supported : Pc3-8500 – 192 Gb Registered Pc3-10600 – 144 Gb Registered Pc3-10600 – 48 Gb Unbuffered – Ecc
Storage & Optical Controllers :
Hard Drive : None
Optical Storage Type : Dvd-rom Dvd – Sata
Storage Controllers :
Type : Raid – Plug-in Card – Pcie 2.0 X4
Controller Interface Type : Sata 3gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P410i With 256 Mb Bbwc
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 256 Mb
Display & Graphics :
Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 64 Mb
Networking :
Type : Integrated
Interface (bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity :
Expansion Bays Total (free) :
5 (total) / 4 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 1 (free) X Cpu
18 (total) / 15 (free) X Dimm 240-pin
4 Pcie 2.0 X8 (x4 Mode)
1 Pcie 2.0 X16 (x8 Mode)
1 Pcie 2.0 X8
Interfaces & Ports :
1 X Display / Video
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X Serial 2 X Lan (gigabit Ethernet)
1 X Hp Ilo 4 X Usb 2.0 (2 In Front)
Miscellaneous :
Features :
System Password
Power-on Password
Serial Port I/o Control
Compliant Standards :
Acpi 2.0, Fcc Class B Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Bsmi Cns 13438
Power Description:
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 460 Watt
Dimensions & Weight :
Width : 8.6 In
Depth : 23.5 In
Height : 18.5 In
Weight : 54 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
