General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 670632-S01
Manufacturer Website Address : WWW.HPE.COM

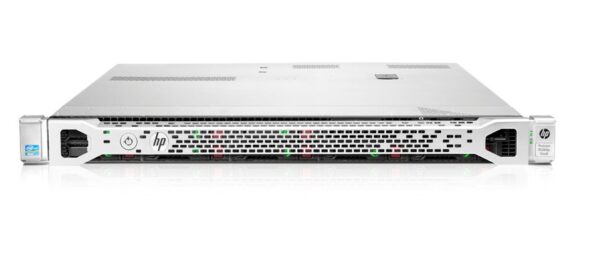

Product Name : Proliant Dl360p Gen8 – 2-way 1u Rack Server ( Smart Buy Model)
Processor & Chipset :
Processor Type : Intel Xeon E5-2609 / 2.4 Ghzz
Number Of Cores : Quad-core
Installed Qty : 1
Max Supported Qty : 2
64-bit Computing : Yes
Upgradability : Upgradable
Chipset Type : Intel C600
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 10 Mb
Cache Per Processor : 10 Mb
Memory :
Installed Size : 8 Gb / 384 Gb (max)
Technology : Ddr3 Sdram
Effective Memory Speed : 1333 Mhz
Rated Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1 X 8 Gb
Ram Supported : Pc3-12800 – 384 Gb Registered Pc3-10600 – 768 Gb Pc3-10600 – 128 Gb Unbuffered – Advanced Ecc
Storage & Optical Storage :
Hard Drive : None
Optical Drive Type : None
Storage Controller :
Type : 1 X Raid – Integrated – Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P420i With Zm
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : Zm
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
Network & Communication :
Type : Plug-in Card
Interface (bus) Type : Pci Express X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
Expansions & Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External 5.25inch
8 (total) / 8 (free) X Hot-swap 2.5inch Sff
Expansion Slots Total (free) :
24 (total) / 23 (free) X Dimm 240-pin
2 (total) / 1 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 1 (free) X Sd Card (internal)
Interfaces & Ports :
1 X Serial
1 X Vga
4 X Lan (gigabit Ethernet)
1 X Hp Ilo
6 X Usb 2.0 (2 Front, 4 Rear)
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Serial Port I/o Control
Quicklock
Compliant Standards :
Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Bsmi Cns 13438
Manufacturer Selling Program :
Hp Smart Buy
Power Device :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 460 Watt
80 Plus Certification : 80 Plus Gold
Efficiency : 94%
Dimensions & Weight :
Width : 17.1 In
Depth : 27.5 In
Height : 1.7 In
Weight : 31.99 Lbs
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
