General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 712329-001
Manufacturer Website Address : WWW.HPE.COM

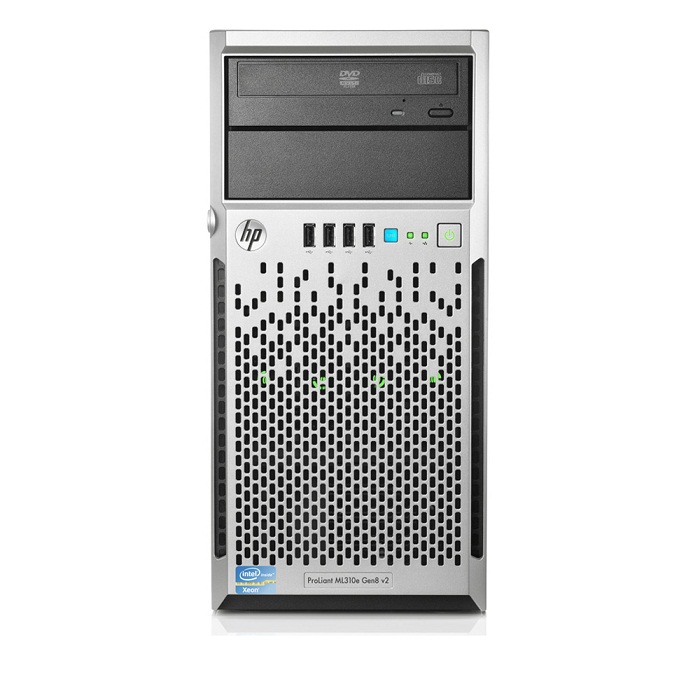

Product Name : Proliant Ml310e G8 V2 – 4u Micro Tower Server (base Model)
Processor & Chipset :
Processor Type : Intel Xeon E3-1220-v3/3.1ghz
Max Turbo Speed : 3.5 Ghz
Number Of Cores : Quad-core
Installed Qty : 1
Max Supported Qty : 1
64-bit Processing : Yes
Chipset Type : Intel C222
Cache Memory :
Cache Memory : 8 Mb L3 Cache
Cache Per Processor : 8 Mb
Memory :
Installed Size : 4 Gb / 32 Gb (max)
Technology : Ddr3 Sdram – Ecc
Effective Memory Speed : 1600 Mhz
Rated Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-pin
Slots : 4 (total) / 3 (empty)
Features : Unbuffered, Dual Channel Memory Architecture, Hp Smartmemory
Configuration Features : 1 X 4 Gb
Storage & Optical Storage :
Hard Drive : No Hdd
Optical Drive Type : Dvd-rw Dvd-writer – Sata
Storage & Storage Controller :
Type : 1 X Sata – Integrated – Pcie 2.0
Controller Interface Type : Sata 6gb/s
Storage Controller Name : Hp Dynamic Smart Array B120i
Channel Qty : 6
Raid Level : Raid 0, Raid 1, Raid 10
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Interface (bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc332i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansions & Connectivity :
Expansion Bays Total (free) :
2 (total) / 1 (free) X External 5.25inch X 1/2h
4 (total) / 4 (free) X Hot-swap 3.5inch Lff
Expansion Slots Total (free) :
1 (total) / 0 (free) X Cpu
4 (total) / 3 (free) X Dimm 240-pin
1 (total) / 1 (free) X Pcie 2.0 X4 – Half-length, Full-height ( X1 Mode )
1 (total) / 1 (free) X Pcie 2.0 X8 – Full-length, Full-height ( X1 Mode )
1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height ( X8 Mode )
Interfaces & Ports :
1 X Serial
1 X Vga
2 X Lan (gigabit Ethernet)
1 X Hp Ilo
5 X Usb 2.0 ( 4 Front, 1 Internal )
2 X Usb 3.0
Miscellaneous :
Features :
Administrator Password
Power-on Password
Compliant Standards :
Acpi 2.0b, Fcc Class B Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Bsmi Cns 13438
Power Device :
Device Type : Power Supply
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 350 Watt
Efficiency : 85%
Dimensions & Weight :
Width : 6.9 In
Depth : 18.7 In
Height : 14.5 In
Weight : 25.3 Lbs
Condition : Refurbished.
Availability : In Stock
Our Warranty : 90 Days
