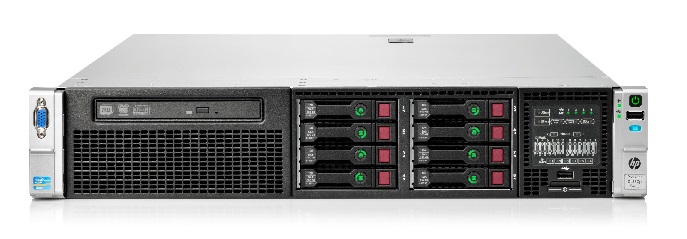

HPE 734793-S01 Proliant Dl380p G8 S-buy- 2x Xeon 10-core E5-2670 V2/2.5ghz, 32gb Ddr3 Ram, 8sff Sas/sata Hdd Bays, Hp Smart Array P420i/1gb Fbwc (raid 0/1/1+0/5/5+0), Hp Flexfabric 10gb 2-port 533flr-t Adapter, 2x 750w Ps, 2u Rack Server
General Information :
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 734793-S01
Manufacturer Website Address: WWW.HPE.COM
Product Name: Proliant Dl380p G8 2u-rack Server Smart Buy
Processor & Chipset :
Processor Type : Intel Xeon E5-2670 V2 / 2.5ghz
Compatible Slots : Lga2011 Socket
Multi-core Technology : Ten-core (10-core)
64 Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Model : Intel C600
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 50 Mb
Cache Per Processor : 25 Mb
Memory :
Installed Size: 32 Gb / 768 Gb (max)
Technology: Ddr3 Sdram
Memory Speed: 1866 Mhz
Memory Specifications Compliance: Pc3-14900
Form Factor: Dimm 240-pin
Number Of Total Memory Slots: 24
Features: Registered, Dual Rank, Quad Channel Memory Architecture, Hp Smart Memory
Configuration Features: 2 X 16 Gb
Ram Supported:
Pc3-12800 – 384 Gb – Registered
Pc3-14900 – 768 Gb
Pc3-10600 – 128 Gb – Unbuffered – Advanced Ecc
Storage :
Hard Drive : None Ship Standard
Internal Storage : Standard 8 Sff Sas/sata Hdd Bays
Optical Drive Bay : Optional Slim Optical Bay (sata Dvd-rw /rom Optical Drive)
Storage Controllers :
Storage Controller Type : 1 X Raid – Plug-in Card – Pci Express 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P420i With 1 Gb Fbwc
Raid Level: Raid 0 Raid 1 Raid 5 Raid 10 Raid 50
Buffer Size : 1 Gb
Display & Graphics :
Graphics Type : Integrated
Graphics Controller Model : Matrox G200
Network & Communication :
Networking Type : Plug-in Card
Interface (bus) Type : Pci Express 2.0 X8
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp 533flr-t
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
Expansion & Connectivity :
Expansion Bays Total (free):
1 (total) ( 1 ) (total) X Front Accessible – 5.25in Slim Line
8 (total) ( 8 ) (total) X Hot-swap – 2.5in Sff
Expansion Slots Total:
24 (total) / 22 (free) X Memory – Dimm 240-pin
2 (total) / 0 (free) X Processor
2 (total) / 2 (free) X Pci Express 3.0 X16 – Full-length, Full-height
3 (total) / 3 (free) X Pci Express 3.0 X8 – Half-length, Full-height
1 (total) / 1 (free) X Pci Express 2.0 X8 – Half-length, Full-height ( X4 Mode )
1 (total) / 0 (free) X Flexiblelom ( X4 Mode )
Interfaces & Ports:
1 X Serial – Rs-232 – 9 Pin D-sub (db-9)
2 X Display / Video – Vga – 15 Pin Hd D-sub (hd-15) ( 1 Front, 1 Rear )
7 X Usb – 4 Pin Usb Type A ( 2 Front, 4 Rear, 1 Internal )
2 X Lan (10gigabit Ethernet)
1 X Management – Hp Ilo – Rj-45 Engine Standard
Power Description :
Device Type: Power Supply Hot Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/220 V
Power Provided: 750 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.5 In
Depth : 27.5 In
Height : 3.4 In
Weight : 41 Lbs
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
