General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 741065-B21
Manufacturer Website Address : WWW.HPE.COM

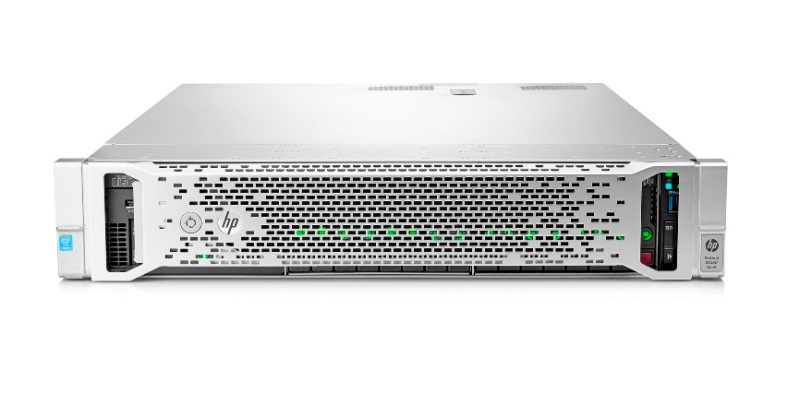

Product Name : HPE Proliant Dl560 Gen9 E5-4620v3 2p 64gb-r P440ar/2gb 8sff 2x1200w Rps Base Server
Product Form Factor : Rack-mountable – 2u
Server Scalability : 4-way
Processor & Chipset :
Processor Type : Intel Xeon E5-4620v3/ 2.0ghz
Max Turbo Speed : 2.6 Ghz
Quickpath Interconnect : 8 Gt/s
Number Of Cores : 10-core
Installed Qty : 2
Max Supported Qty : 4
Cpu Upgradability : Upgradable
Chipset Type : Intel C610 Series
Compatible Processor Socket : Fclga2011
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 50 Mb
Cache Per Processor : 25 Mb
Memory :
Installed Size : 64 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-pin
Slots : 24 (total) / 20 (empty)
Features : Registered, Memory Mirroring, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 4 X 16 Gb
Ram Supported : Pc4-17000 – 1.5 Tb Registered Pc4-17000 – 1.5 Tb Load-reduced
Storage :
Hard Drive : None
Optical Drive : None
Storage Controllers :
Type : 1 X Raid – Pci Express 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Smart Array P440ar With 2gb Fbwc
Channel Qty : 26
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Display & Graphics Controllers :
Graphics Processor : Matrox G200
Video Interfaces : Vga
Network & Communication :
Interface (bus) Type : Pci Express 2.0 X8
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp 533flr-t
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
Expansion/ Connectivity :
expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
expansion Slots Total (free) :
4 (total) / 2 (free) X Cpu
24 (total) / 20 (free) X Dimm 288-pin
1 (total) / 0 (free) X Flexiblelom
2 (total) / 2 (free) X Pcie 3.0 X16 – Half-length, Full-height ( X8 Mode )
1 (total) / 0 (free) X Pcie 3.0 X8 – Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X16 – Half-length, Full-height ( X8 Mode, 2 Processors Must Be Installed )
2 (total) / 2 (free) X Microsd Card
1 (total) / 0 (free) X Pcie 3.0 X8 – Half-length, Full-height ( 2 Processors Must Be Installed )
1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height ( 2 Processors Must Be Installed )
interfaces & Ports :
1 X Serial
1 X Vga
1 X Hp Ilo
3 X Usb 2.0 ( 2 Rear, 1 Internal )
4 X Usb 3.0 ( 1 Front, 2 Rear, 1 Internal )
2 X Lan (10gigabit Ethernet)
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.5 In
Depth : 29.5 In
Height : 3.4 In
Weight : 39 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
