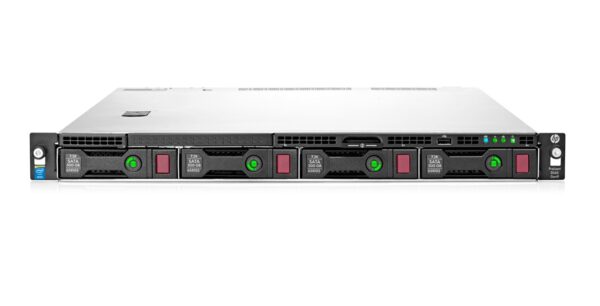

HPE 785836-B21 Proliant DL60 Gen9 E5-2609V3 8Gb 4Lff Server

General Information :

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 785836-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl60 G9 – 1u Rack Server ( Base Model)

Processor & Chipset :

Processor Type : Intel Xeon E5-2609v3/ 1.9ghz

Quickpath Interconnect : 6.4 Gt/s

Number Of Cores : 6-core

64-bit Computing : Yes

Compatible Processor Socket : Fclga2011-3

Installed Qty : 1

Max Supported Qty : 2

Chipset Type : Intel C610 Series

Cache Memory :

Cache Memory Type : Smart Cache

Installed Size : 15mb

Cache Per Processor : 15 Mb

Memory :

Installed Size : 8(1×8) Gb / 128 Gb (max)

Technology : Ddr4 Sdram Pc4-17000r ( Ddr4-1600)

Form Factor : Dimm 288-pin

Total Memory Slots : 8

Ram Supported : 128 Gb – Registered, 256 Gb – Load-reduced

Storage:

Hard Drive : None

Optical Drive : None

Storage Controllers:

Storage Controller Name : Smart Array B140i

Buffer Size : None

Disk Drive : Up To 6gb/s Sata (serial Ata)

Connectors : 10 Internal Sata Connectors

Server Interface : X4 Pcie 2.0

Sata Speed : 6gb/s Sata Links

Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)

Host Memory Addressing : 64-bit, Supporting Greater Than 4gb Server Memory Space

Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50

Graphics Controller :

Type : Integrated

Graphics Processor : Matrox G200eh2

Video Interfaces : Vga

Network & Communication:

Ethernet Controller : Hp Ethernet 1gb 2-port 361i Adapter

Network Interface : 10base-t/100base-tx/1000base-tx

Ethernet Controller : I350 Powerville

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Connector : Rj-45 (two)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az

Power Description :

Device Type : Flex Slot Platinum Plus Power Supply

Installed Qty : 1

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 550 Watt

Expansion/ Connectivity :

Expansion Bays Total (free) :

4 (total) / 4 (free) X Hot-swap 3.5 Lff

Expansion Slots Total (free) :

2 (total) / 1 (free) X Cpu

8 (total) / 7 (free) X Dimm 288-pin

1 (total) / 1 (free) X Pcie 3.0 X16 – Low-profile

1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile

1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :

2 X Lan (gigabit Ethernet)

1 X Vga

1 X Usb 2.0 ( 1 In Front )

3 X Usb 3.0 ( 2 Rear, 1 Internal )

Dimensions & Weight :

Depth : 23.9 Inch

Width : 17.1 Inch

Height : 1.7 Inch

Weight : 19.8 Lbs

Condition : Refurbished

Availability : In Stock

Our Warranty : 90 Days
