General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 793310-B21
Manufacturer Website Address : WWW.HPE.COM

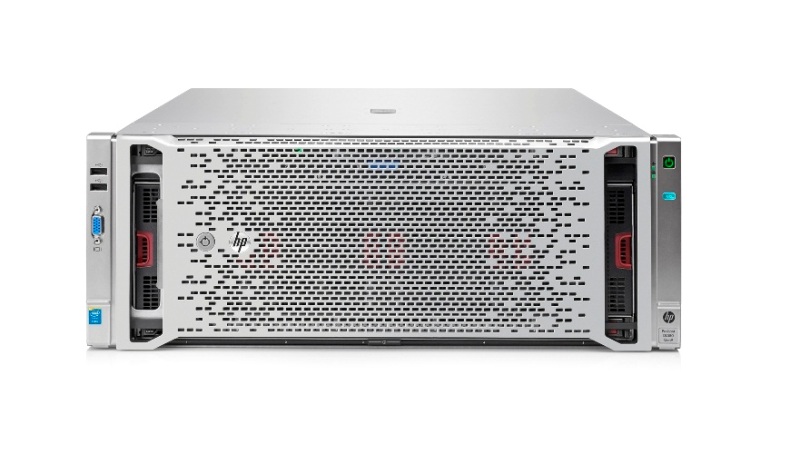

Product Name : Proliant Dl580 Gen9 – 4u Rack Mountable Server ( High Performance)
Processor & Chipset :
Cpu : Intel Xeon E7-4850v3 / 2.2 Ghz
Max Turbo Speed : 2.8 Ghz
Number Of Cores : 14-core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Chipset Type : Intel C602j
Cache Memory :
Installed Size : L3 Cache – 140 Mb
Cache Per Processor : 35 Mb
Memory :
Installed Size : 128 Gb / 6 Tb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Slots : 96 (total) / 88 (empty)
Configuration Features : 8 X 16 Gb
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Type : 1 X Raid – Pcie 2.0 X4
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Smart Array P830i With 4gb Fbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
Network & Communication:
Interface (bus) Type : Pci Express 2.0 X8
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Flexfabric 534flr-sfp+
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
Expansion/ Connectivity :
Expansion Bays Total (free) :
5 (total) / 5 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
96 (total) / 88 (free) X Dimm 240-pin
4 (total) / 0 (free) X Cpu
5 (total) / 5 (free) X Pcie 3.0 X16 – Full-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X16 – Half-length, Full-height ( X8 Mode )
1 (total) / 0 (free) X Flexiblelom
1 (total) / 1 (free) X Microsd Card
Interfaces & Ports :
1 X Serial
2 X Vga ( 1 Front, 1 Rear )
1 X Hp Ilo
8 X Usb 2.0 ( 2 Front, 4 Rear, 2 Internal )
2 X Lan (10gigabit Ethernet) – Sfp+
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Serial Port I/o Control
Usb Port Control
Compliant Standards :
Acpi 2.0, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Installed Qty : 4
Max Supported Qty : 4
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1200 Watt
Dimensions & Weight :
Depth : 29 Inch
Width : 17.48 Inch
Height : 6.88 Inch
Weight : 70.94 Lbs
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
