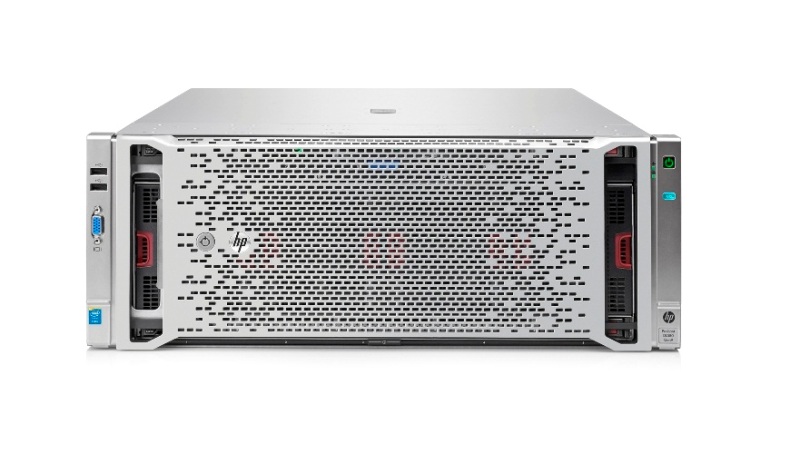

HPE 793314-B21 DL580 Gen9 E7-8893v3 4P 256GB-R P830i/4G 534FLR-SFP+ 1500W RPS Server

General Information :

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 793314-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl580 Gen9 – 4u Rack Mountable Server ( Database Models)

Processor & Chipset :

Cpu : Intel Xeon E7-8893v3 / 3.2 Ghz

Max Turbo Speed : 3.5 Ghz

Number Of Cores : Quad-core

Cpu Qty : 4

Max Cpu Qty : 4

Cpu Upgradability : Upgradable

Processor Main Features : Intel Turbo Boost Technology 2

Chipset Type : Intel C602j

Cache Memory :

Cache Memory Type : Smart Cache

Installed Size : 180 Mb

Cache Per Processor : 45 Mb

Memory :

Installed Size : 256 Gb / 6 Tb (max)

Technology : Ddr4 Sdram

Form Factor : Dimm 288-pin

Slots : 96 (total) / 80 (empty)

Configuration Features : 16 X 16 Gb

Storage:

Hard Drive : None

Optical Drive : None

Graphics Controller:

Graphics Processor : Matrox G200

Video Interfaces : Vga

Storage Controllers:

Type : 1 X Raid – Pcie 2.0 X4

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : Smart Array P830i With 2gb Fbwc

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60

Buffer Size : 2 Gb

Network & Communication:

Interface (bus) Type : Pci Express 2.0 X8

Ethernet Ports : 2 X 10 Gigabit Ethernet

Ethernet Controller : Hp Flexfabric 534flr-sfp+

Data Link Protocol : 10 Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Acpi Support, Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x

Expansion/ Connectivity :

Expansion Bays Total (free) :

10 (total) / 10 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :

96 (total) / 80 (free) X Dimm 288-pin

4 (total) / 0 (free) X Cpu

5 (total) / 5 (free) X Pcie 3.0 X16 – Full-length, Full-height

4 (total) / 4 (free) X Pcie 3.0 X16 – Half-length, Full-height (x8 Mode)

1 (total) / 0 (free) X Flexiblelom

1 (total) / 1 (free) X Microsd Card

Interfaces & Ports :

1 X Serial

2 X Vga (1 Front, 1 Rear)

1 X Hp Ilo

8 X Usb 2.0 (2 Front, 4 Rear, 2 Internal)

2 X Lan (gigabit Ethernet)

Miscellaneous :

Features :

Administrator Password

Power-on Password

Keyboard Password

Serial Port I/o Control

Usb Port Control

Compliant Standards :

Acpi 2.0, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438

Power Description :

Device Type : Power Supply – Hot-plug

Power Redundancy : Yes

Installed Qty : 4

Max Supported Qty : 4

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 1500 Watt

80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :

Depth : 29 Inch

Width : 17.48 Inch

Height : 6.88 Inch

Weight : 70.94 Lbs

Condition : Refurbished

Availability : In Stock

Our Warranty : 90 Days
