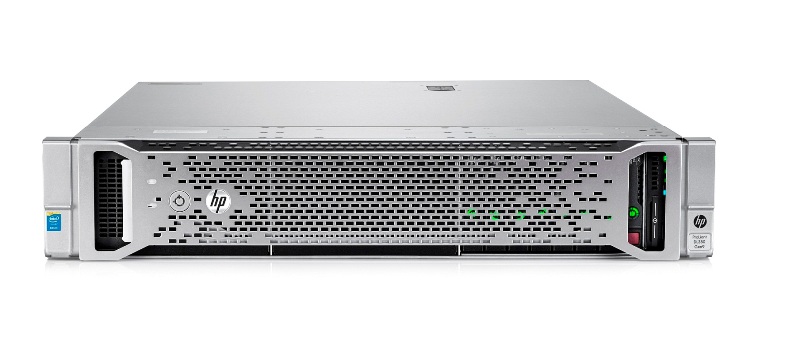

HPE 803861-B21 DL380 Gen9 E5-2690v3 2P 32GB-R P440ar 8SFF 2x800W OneView Server

General Information :

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 803861-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl380 Gen9 – 2u Rack Mountable Server ( Oneview Model)

Processor & Chipset :

Processor Type : Intel Xeon E5-2690v3/ 2.6ghz

Max Turbo Speed : 3.5 Ghz

Quickpath Interconnect: 9.60 Gt/s

Number Of Cores : 12-core

64-bit Computing : Yes

Compatible Processor Socket : Fclga2011-3

Installed Qty : 2

Max Supported Qty : 2

Chipset Type : Intel C610 Series

Cache Memory :

Cache Memory Type : Smart Cache

Installed Size : 60mb

Cache Per Processor : 30mb

Memory :

Installed Size : 32 Gb / 384 Gb (max)

Technology : Ddr4 Sdram – Advanced Ecc

Memory Speed : 2133 Mhz

Memory Specification Compliance : Pc4-17000

Form Factor : Dimm 288-pin

Features : Registered, Online Spare Memory, Dual Rank, Quad Channel Memory Architecture, Hp Smartmemory

Configuration Features : 2 X 16 Gb

Ram Supported : Pc4-17000 – 384 Gb – Registered ¦ Pc4-17000 – 1.5 Tb – Load-reduced

Storage & Storage Controller :

Hard Drive : None.

Optical Drive Type : Dvd-rw – Sata.

Storage Controllers:

Storage Controller Name : Smart Array P440ar

Buffer Size : 2 Gb

Disk Drive : 12gb/s Sas / 6gb/s Sata

Sas Port Link Rate : 12gb/s Per Physical Link Supported

Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)

Physical Drives : Up To 26 Drives

Logical Drives Supported : Up To 64 Logical Drives

Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Display & Graphics Controllers :

Graphics Controller Type : Integrated Matrox G200eh2

Video Memory : 16 Mb

Network & Communication:

Ethernet Ports : 2 X 10 Gigabit Ethernet, 4 X Gigabit Ethernet

Ethernet Controller : Hp 331i, Hp 556flr-sfp+

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion/ Connectivity :

Expansion Bays Total (free) :

8 (total) / 8 (free) X Hot-swap 2.5 Sff

1 (total) / 0 (free) X External 5.25

Expansion Slots Total (free) :

24 (total) / 22 (free) X Dimm 288-pin

2 (total) / 0 (free) X Cpu

2 (total) / 2 (free) X Pcie 3.0 X16 – Half-length, Full-height ( X8 Mode )

1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :

4 X Lan (gigabit Ethernet) – Rj-45

1 X Hp Ilo – Rj-45

1 X Vga

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

2 X Lan (10gigabit Ethernet)(sfp+)

Miscellaneous :

Included Accessories :

Hp Easy Install Rails

Features

Administrator Password

Power-on Password

Serial Port I/o Control

Uefi Bios

Compliant Standards :

Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438

Power Description :

Device Type : Power Supply – Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

Efficiency : 94%

Dimensions & Weight :

Width : 17.5 Inch

Depth : 26.7 Inch

Height : 3.4 Inch

Weight : 32.5 Lbs

Availability : In Stock

Condition : Refurbished

Our Warranty : 90 Days
