General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 826564-B21
Manufacturer Website Address : WWW.HPE.COM

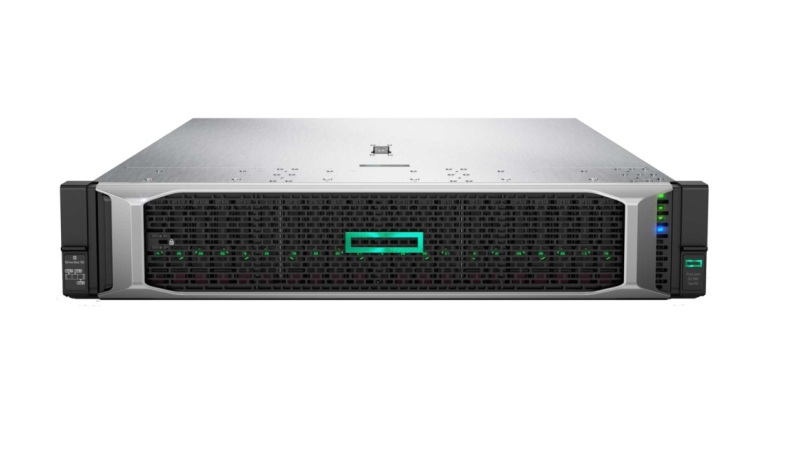

Product Name: Proliant Dl380 Gen10 – 2u Rack Mountable Server ( Entry Sff Model)
Processor & Chipset :
Cpu : Intel Xeon Bronze 3106 / 1.7 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Cpu Socket : Fclga3647
Chipset Type : Intel C621
Cache Memory :
Nstalled Size : L3 Cache – 11 Mb
Cache Per Processor : 11 Mb
Memory :
Installed Size : 16 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Features : Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, Hp Smartmemory
Configuration Features : 1 X 16 Gb
Ram Supported : Pc4-20800 – 384 Gb Registered ¦ Pc4-20800 – 768 Gb Load-reduced
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software
Channel Qty : 14
Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd
Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 1 (free) X Cpu
12 (total) / 11 (free) X Dimm 288-pin
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
1 X Hp Ilo – Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
4 X Lan (gigabit Ethernet) – Rj-45 (4 Rear)
1 X Hp Ilo – Rj-45 (1 Rear)
1 X Vga (1 Rear)
Miscellaneous :
Included Accessories :
High-performance Heatsink
4 Standard Fans
Cables Included :
Power Cable
Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy : Scheme
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%
Dimensions & Weight :
Width : 17.5 In
Depth : 28.8 In
Height : 3.4 In
Weight : 32.54 Lbs
Availability : In Stock
Condition : New Cto Build
Our Warranty : 90 Days
