General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 826681-B21
Manufacturer Website Address : WWW.HPE.COM

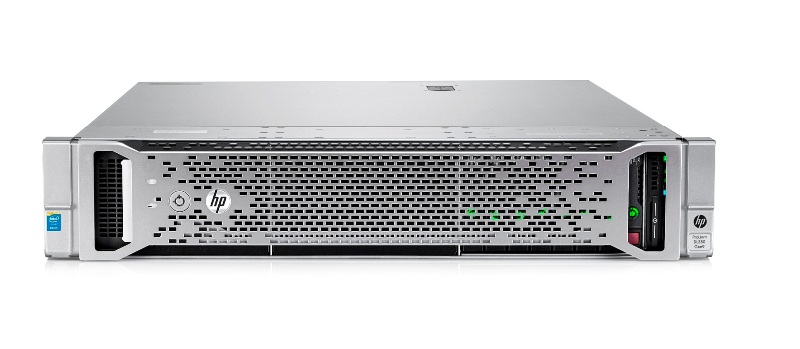

Product Name: Proliant Dl380 Gen9 – 2u Rack Mountable Server ( Entry Model)
Processor & Chipset :
Cpu : Intel Xeon E5-2609v4 / 1.7 Ghz
Number Of Cores : 8-core
Intel Qpi Speed : 8 Gt/s
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 20 Mb
Cache Per Processor : 20 Mb
Memory :
Installed Size : 8 Gb / 384 Gb (max)
Technology : Ddr4 Sdram
Memory Speed : 1866 Mhz
Form Factor : Dimm 288-pin
Features : Registered, Hp Smartmemory
Configuration Features : 1 X 8 Gb
Ram Supported : 384 Gb – Registered ¦ 768 Gb – Load-reduced
Storage & Storage Controller :
Hard Drive : None.
Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s
Storage Controller Name : Hp Dynamic Smart Array B140i
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Display & Graphics Controllers :
Graphics Controller Type : Integrated Matrox G200eh2
Video Memory : 16 Mb
Network & Communication:
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp 331i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
1 (total) / 0 (free) X Cpu
24 (total) / 23 (free) X Dimm 288-pin
2 (total) / 2 (free) X Pcie 3.0 X16 – Half-length, Full-height ( X8 Mode )
1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
4 X Lan (gigabit Ethernet) – Rj-45
1 X Hp Ilo – Rj-45
1 X Vga
5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )
Miscellaneous :
Included Accessories :
Hp Easy Install Rails
Compliant Standards :
Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 4943, Gb 9254, Ashrae, Cns 13438, Bsmi Cns 14336-1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%
Dimensions & Weight :
Width : 17.5 Inch
Depth : 26.7 Inch
Height : 3.4 Inch
Weight : 32.5 Lbs
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
