General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 863447-B21
Manufacturer Website Address : WWW.HPE.COM

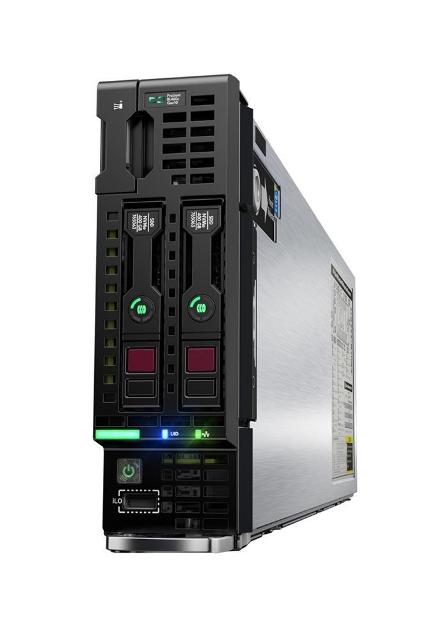

Product Name: Proliant Bl460c Gen10 Blade Server
Processor & Chipset :
Cpu : Intel Xeon Gold 18-core 6140 / 2.3 Ghz
Max Turbo Speed : 3.7 Ghz
Number Of Cores : 18-core
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Cpu Socket : Socket P
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 49.5 Mb
Cache Per Processor : 24.75 Mb
Memory :
Installed Size : 128 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Slots : 16 (total) / 12 (empty)
Features : Registered, Dual Rank
Ram Supported : Pc4-20800 – 1.024 Tb Load-reduced Pc4-20800 – 512 Gb Registered
Storage :
Hard Drive : None
Optical Drive : None
Storage Controllers :
Storage Controllers Type : 1 X Raid – Pcie 3.0 X16
Storage Controller Name : HPE Smart Array P204i-b
Channel Qty : 4
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 1 Adm
Buffer Size : 1 Gb
Graphics Controller :
Graphics Processor : Matrox G200eh
Video Memory : 16 Mb
Network & Communication :
Interface (bus) Type : Flexiblelom
Ethernet Ports : 2 X 20 Gigabit Ethernet
Ethernet Controller : Hp Flexfabric 650flb
Data Link Protocol : Gigabit Ethernet, 20 Gigabit Ethernet
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Expansion Bays Total (free) :
2 (total) / 2 (free) X Hot-swap 2.5inch Sff
Expansion Slots Total (free) :
2 (total) / 0 (free) X Cpu
16 (total) / 12 (free) X Dimm 288-pin
1 (total) / 0 (free) X Flexiblelom
1 (total) / 1 (free) X Microsdhc Card (internal)
2 (total) / 2 (free) X Pcie 3.0 X16
2 Expansion Slot (x16 Mode)
Interfaces & Ports :
1 X Hp Ilo – Type A (1 In Front)
1 X Usb 3.0 (1 Internal)
1 X Lan – Rj-45 (HPE Ilo 5 To Onboard Administrator Link)
2 X Lan (20gigabit Ethernet)
Dimensions & Weight :
Width : 2.2 In
Depth : 20.4 In
Height : 7.1 In
Weight : 14.00 Lbs
Availability : In Stock.
condition : New Factory Sealed.
our Warranty : 90 Days.
