General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 875760-S01
Manufacturer Website Address : WWW.HPE.COM

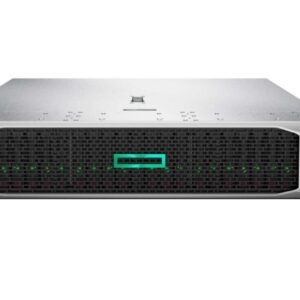

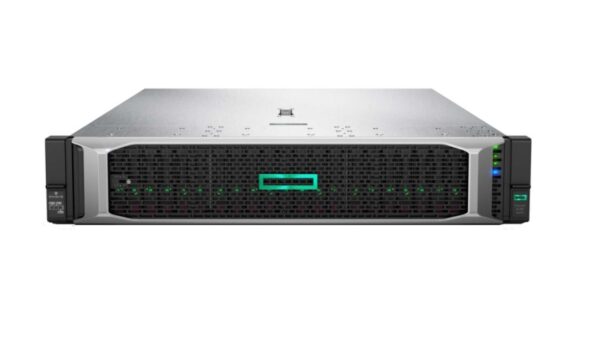

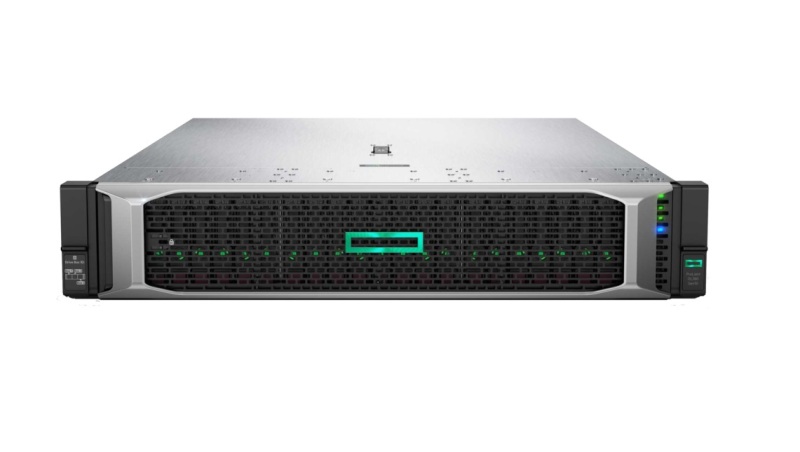

Product Name: Proliant Dl380 Gen10 – 2u Rack Mountable Server ( Smart Buy Model)
Processor & Chipset :
Cpu : Intel Xeon Silver 4110 / 2.1 Ghz
Max Turbo Speed : 3 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Socket P
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 11 Mb
Cache Per Processor : 11 Mb
Memory :
Installed Size : 16 Gb / 384 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Features : Registered, Dual Rank, Hp Smartmemory, 6-channel Memory Architecture
Configuration Features : 1 X 16 Gb
Ram Supported : Pc4-20800 – 384 Gb Registered ¦ Pc4-20800 – 768 Gb Load-reduced
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 1 (free) X Cpu
12 (total) / 11 (free) X Dimm 288-pin
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
4 X Lan (gigabit Ethernet) – Rj-45
1 X Hp Ilo – Rj-45 (1 Rear)
1 X Vga (1 Rear)
8 X Sata-600 / Sas 3.0
1 X Hp Ilo – Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
Miscellaneous :
Included Accessories :
Hp Easy Install Rail Kit
4 X Standard Hot Plug Fans
Cpu Standard Heatsink
Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Manufacturer Selling Program :
HPE Smart Buy
Power Description :
Device Type : Power Supply – Hot-plug / Redundant
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%
Dimensions & Weight :
Width : 17.5 In
Depth : 28.7 In
Height : 3.4 In
Weight : 32.85 Lbs
Availability : In Stock
Condition : New Cto
Our Warranty : 90 Days
