General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 879991-B21
Manufacturer Website Address : WWW.HPE.COM

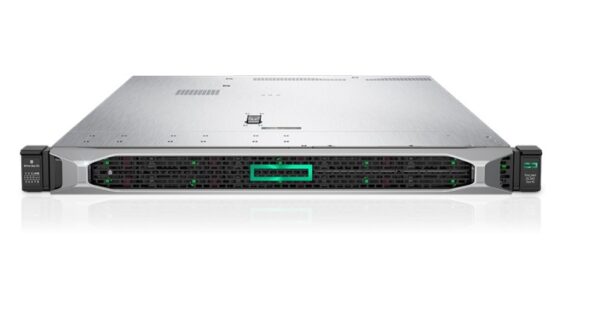

Product Name : Proliant Dl360 Gen10 – 1u Rack Mountable Server ( High Performance Model)
Processor & Chipset :
Cpu : 1st Gen Intel Xeon Gold 6130 / 2.1 Ghz
Max Turbo Speed : 3.7 Ghz
Number Of Cores : 16-core
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 44 Mb
Cache Per Processor : 22 Mb
Memory :
Installed Size : 64 Gb/ 1.5 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2666 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-20800
Form Factor : Dimm 288-pin
Slots : 24 (total) / 22 (empty)
Features : Dual Rank
Configuration Features : 2 X 32 Gb
Ram Supported : Pc4-20800 – 3.072 Tb Load-reduced Pc4-20800 – 768 Gb Registered Pc4-20800 – 192 Gb Non-volatile
Storage Controllers:
Type : 1 X Raid – Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Storage Controller (2nd) :
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software
Channel Qty : 14
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Interface (bus) Type : Flexiblelom
Ethernet Ports : 4 X Gigabit Ethernet, 2 X 25 Gigabit Ethernet
Ethernet Controller : HPE 640flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External
10 (total) / 10 (free) X Hot-swap 2.5 Sff
Slots :
24 (total) / 22 (free) X Dimm 288-pin
2 (total) / 0 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 0 (free) X Flexiblelom – Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 – Full-height
Interfaces :
8 X Sata-600 / Sas 3.0
1 X Hp Ilo – Type A (1 In Front)
1 X Hp Ilo – Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) – Rj-45 (4 Rear)
2 X Lan (25gigabit Ethernet) (sfp28) (2 Rear)
Miscellaneous :
Included Accessories :
HPE Easy Install Rails
High-performance Heatsink
7 X High Performance Fans
Cables Included :
Power Cable
Compliant Standards :
Aes, Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 35.87 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
