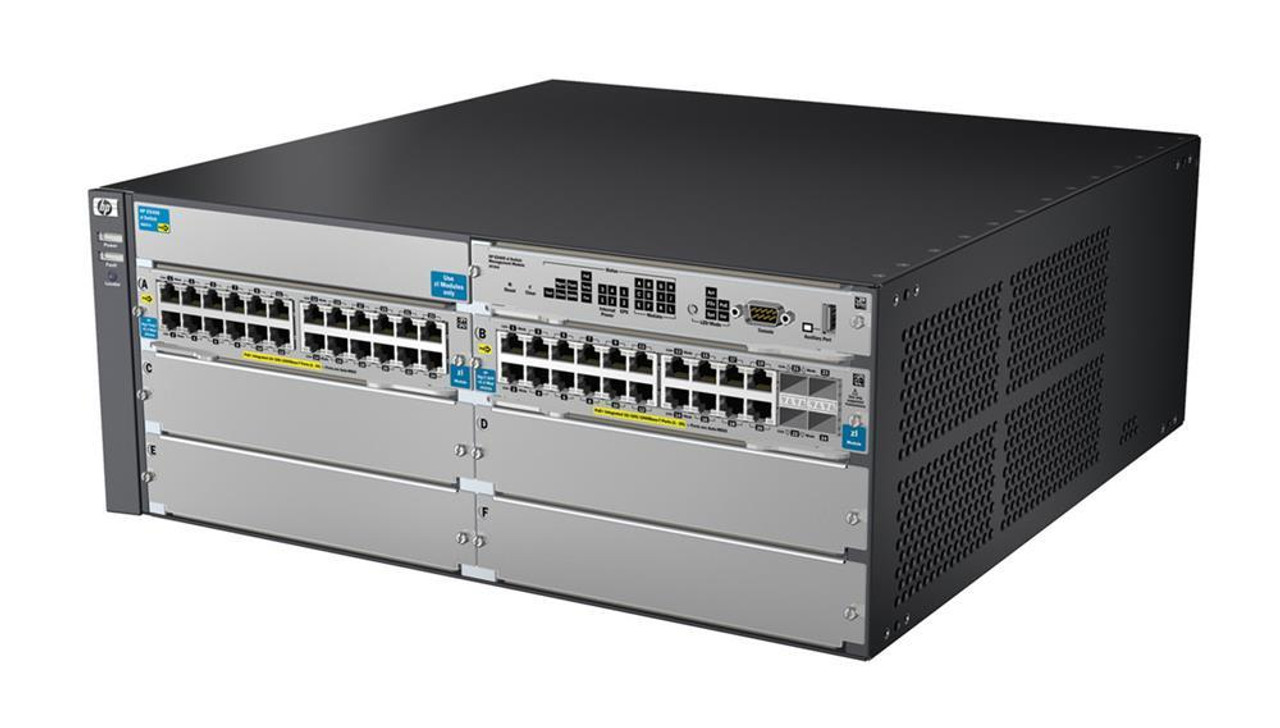

HPE – E5406-44g-poe+/4g-sfp V2 Zl Switch – Switch – L4 – Managed – 44 X 10/100/1000 + 4 X Sfp – Rack-mountable – POE(J9539A).
Key Features :
Device Type : Switch – 44 Ports – L4 – Managed – With Hp E5400 Zl Switch Premium License
Enclosure Type : Rack-mountable – 4u
Ports : 44 X 10/100/1000 + 4 X Sfp
Power Over Ethernet (poe) : yes
Performance : Routing/switching Capacity : 379.2 Gbps
throughput : Up To 282.1 Mpps
Mac Address Table Size : 64k Entries
Jumbo Frame Support : Yes
Routing Protocol : Rip-1, Rip-2, Vrrp, Ospfv2, Pim-sm, Static Ip Routing, Pim-dm, Igmpv3, Ospfv3, Static Ipv6 Routing, Mldv2, Mld
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Routing, Dhcp Support, Power Over Ethernet (poe), Bootp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, Manageable, Ipv6 Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Poe+
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 801.1p, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ax
Processor : 1 X Freescale Powerpc 8540 : 666 Mhz
Ram : 256 Mb – Ddr Sdram
Flash Memory : 132 Mb
Power :
Power Device : Power Supply – Hot-plug / Redundant – Plug-in Module
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Expansion / Connectivity :
Interfaces : 44 X 10base-t/100base-tx/1000base-t – Rj-45 – Poe
1 X Rs-232c – Management
4 X Sfp (mini-gbic)
Expansion Slot(s) : 6 (total) / 4 (free) X Expansion Slot
1 (total) / 0 (free) X Compactflash Card
Installed Modules Qty (max) : 2 (installed) / 6 (max)
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
