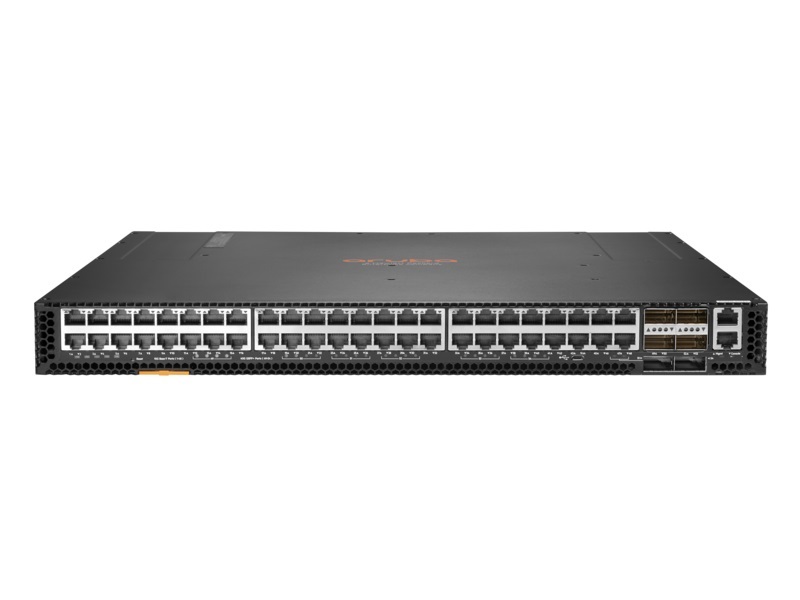

HPE JL581-61001 Aruba 8320 – Switch – L3 – Managed – 48 X 1 Gigabit / 10 Gigabit Ethernet + 6 X 40 Gigabit Qsfp+ – Rack-mountable – Taa Compliant – With X472 5 Fans 2 Power Supply.
Key Features :
Device Type : Switch – 48 Ports – L3 – Managed – With X472 5 Fans 2 Power Supply
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 48 X 1 Gigabit / 10 Gigabit Ethernet + 6 X 40 Gigabit Qsfp+
Performance : Switching Capacity: 2.5 Tbps , Forwarding Performance: 1.905 Mpps
Capacity : Virtual Interfaces (vlans) Per Port For 802.1q: 4096
Mac Address Table Size : 14k Entries
Jumbo Frame Support : 9kb
Routing Protocol : Ospf, Igmpv2, Igmp, Vrrp, Igmpv3, Gre, Static Ipv6 Routing, Ecmp
Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp
Encryption Algorithm : Fips 140-2
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Vpn Support, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Link Aggregation Control Protocol (lacp), Redundant Hot Swappable Fans, Packet Storm Protection, Strict Priority (sp), Loopback, Bridge Protocol Data Unit (bpdu), Multi-chassis Link Aggregation (mlag), Protocol Independent Multicast (pim)
Compliant Standards : Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1t, Ieee 802.1ae, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3ba, Ieee 802.1ax
Processor : 1: 2 Ghz
Ram : 16 Gb
Flash Memory : 8 Mb
Expansion / Connectivity :
Interfaces :
48 X 1/10gbit Lan
1 X Serial Rj-45
1 X Console (micro-usb)
1 X Rj-45
6 X 40gbit Lan Qsfp+
Power :
Power Device : Internal Power Supply – Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Power Provided : 400 Watt
Voltage Required : Ac 120/230 V (50/65 Hz)
Power Consumption Operational : 348 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
