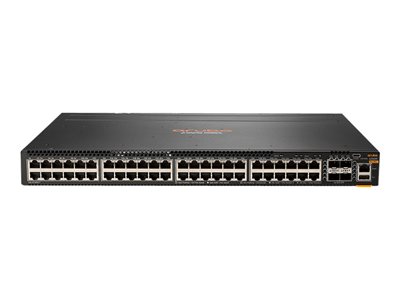

HPE JL762A#ABA Aruba 6300m Switch 48 Ports Managed Rack-mountable Taa Compliant.
Key Features :
Device Type : Switch – 48 Ports – L3 – Managed – Stackable
Enclosure Type : Back To Front Airflow Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)
Mac Address Table Size : 32768 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Egp, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Msdp, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp
Remote Management Protocol : Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli, Sftp
Encryption Algorithm : Fips 140-2
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Dhcp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, High Availability, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Broadcast Storm Protection, Multicast Source Discovery Protocol (msdp), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, 2 Fan Tray Slots, Ip Multicast, Bootstrap Router (bsr) Mechanism, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax
Processor : 1 X Arm Cortex-a72: 1.8 Ghz
Ram : 8 Gb Ddr4 Sdram
Flash Memory : 32 Gb
Expansion / Connectivity :
*interfaces :
48 X 10/100/1000 Base-t Rj-45
4 X 1gbit/10gbit/25gbit/50gbit Sfp56
1 X Usb-c
1 X Management
1 X Usb Type A
Power :
Power Device : Internal Power Supply – Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Power Provided : 75 Watt
Voltage Required : Ac 120/230 V (50/60 Hz)
Features : Power-to-port Airflow
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days
