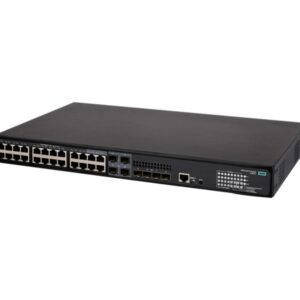

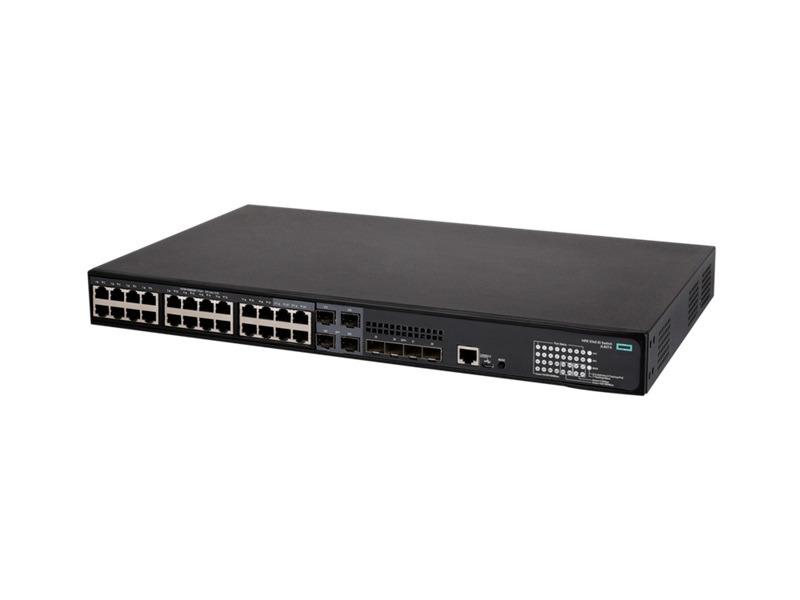

HPE JL828-61001 Flexnetwork 5140 24g 4sfp+ Ei – Switch – L3 – Smart – 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+ – Rack-mountable :
Key Features :
Device Type : Switch – 28 Ports – L3 – Smart
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
Performance : Latency (1000 Mbps): 5 Μs ¦ Latency (10 Gbps): 3 Μs ¦ Throughput: 96 Mpps ¦ Routing/switching Capacity: 128 Gbps
Capacity : Ipv4 Routing Table Entries: 512 ¦ Ipv6 Routing Table Entries: 256 ¦ Vlan Ids: 4094
Mac Address Table Size : 16384 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Ospf, Rip-1, Rip-2, Igmp, Ospfv2, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Cidr
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Cli, Ntp, Icmp, Radius
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs
Features : Flow Control, Bootp Support, Arp Support, Load Balancing, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, High Availability, Half Duplex Mode, Full Duplex Mode, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Dhcp Server, Mld Snooping, Device Link Detection Protocol (dldp) Support, Stp Root Guard, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Security, Energy Efficient Ethernet, Dynamic Arp Protection, Dhcp Protection, Multiple Vlan Registration Protocol (mvrp), Strict Priority Queuing (spq), Port Isolation, Generic Attribute Registration Protocol (garp), Openflow Support, Ip Source Guard, Icmp Router Discovery Protocol (irdp), Link Aggregation, Vlan Double Tagging (q-in-q), Lldp-med, Smart Link, Guest Vlan, Ethernet Oam, Proxy Arp, Weighted Round Robin (wrr), Intelligent Resilient Fabric Technology (irf), Bpdu Protection, Udp Support, Multiple Registration Protocol (mrp)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3az, Ieee 802.1ax, Ieee 802.1r
Ram : 512 Mb Sdram
Flash Memory : 256 Mb
Status Indicators : Port Status, System
Expansion / Connectivity :
Interfaces :
24 X 1000base-t Rj-45
4 X Gigabit / 10gbit Lan Sfp+
1 X Console Rj-45 Management
1 X Micro-usb 5 Pin Usb Header Management
Power :
Power Device : Internal Power Supply
Power Provided : 24 Watt
Voltage Required : Ac 100-240 V (50/60 Hz)
Condition : New Retail Factory Sealed
Availability : In Stock.
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
