General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P19774-B21
Manufacturer Website Address : WWW.HPE.COM

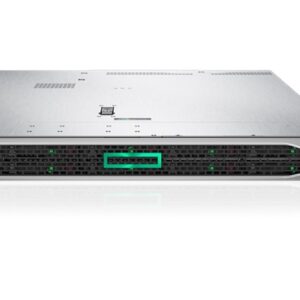

Product Name : Proliant Dl360 Gen10 – 1u Rack Mountable Server ( Nc Model)
Processor & Chipset :
Cpu : 2nd Gen Intel Xeon 4208 / 2.1 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 11 Mb
Cache Per Processor : 11 Mb
Memory :
Installed Size : 16 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2400 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered
Configuration Features : 1 X 16 Gb
Ram Supported : Pc4-20800 – 3.072 Tb Load-reduced Pc4-20800 – 1.5 Tb Registered Pc4-20800 – 192 Gb Non-volatile Pc4-20800 – 6 Tb – HPE Persistent Memory
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Type : Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Interface (bus) Type : Pci Express 2.1 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : HPE 366flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.3az
Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 0 (free) X Flexiblelom
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces :
1 X Hp Ilo – Type A (1 In Front)
1 X Hp Ilo – Rj-45
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga
4 X Lan (gigabit Ethernet) – Rj-45
Miscellaneous :
Included Accessories :
HPE Easy Install Rails
5 X Standard Fans
Compliant Standards :
Weee, Ashrae Class A4, Ashrae Class A3, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
