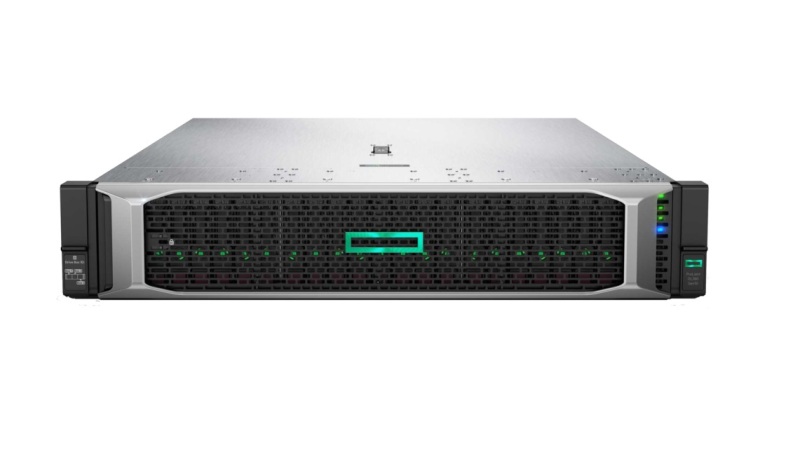

HPE P21271-B21 Proliant Dl560 Gen10 Entry Model 2x Intel Xeon 18-core Gold 5220/2.20ghz, 64(2×32)gb Ddr4 Sdram, HPE Smart Array P408i-a, HPE Ethernet 1gb 4-port Flr-t I350-t4v2 Adapter, 8sff, 2x 1600w Rps 2u Rack Server
General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P21271-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl560 Gen10 2u Rack Server (entry Model)
Processor & Chipset :
Cpu : Intel Xeon Gold 5220 / 2.2 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 18-core
Cpu Qty : 2
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 49.5 Mb
Cache Per Processor : 24.75 Mb
Memory :
Installed Size : 64 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Slots : 48 (total) / 46 (empty)
Features : Registered, Dual Rank, 6-channel Memory Architecture, Slots 25 – 48 Are Available In Four-processor Configuration Only
Configuration Features : 2 X 32 Gb
Ram Supported : Pc4-20800 – 768 Gb Registered ¶ Pc4-20800 – 1.5 Tb Load-reduced
Storage Controllers :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication :
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
1 (total) / 0 (free) X Flexiblelom
2 (total) / 2 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X8 – Three-quarter-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
1 X HPE Ilo – Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X HPE Ilo – Rj-45
4 X Lan (gigabit Ethernet)
1 X Vga (1 Rear)
1 X Serial (1 Rear)
2 X Usb 2.0 (2 Rear)
Miscellaneous :
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 1600 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%
Dimensions & Weight :
Width : 17.5 In
Depth : 29.7 In
Height : 3.4 In
Weight : 40.67 Lbs
Condition : Refurbished.
Availability : Call.
Our Warranty : 90 Days
