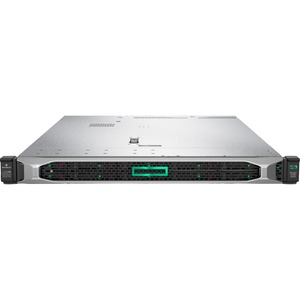

general:
Type: Server
Product Form Factor: Rack-mountable – 1u
Built-in Devices: Led Panel
Server Scalability: 2-way
Hot-swap Bays Qty: 8
Localization Region: Worldwide
processor / Chipset:
Cpu: Intel Xeon Silver 4210r / 2.4 Ghz
Max Turbo Speed: 3.2 Ghz
Number Of Cores: 10-core
Cpu Qty: 1
Max Cpu Qty: 2
Cpu Upgradability: Upgradable
Processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket: Fclga3647 Socket
Chipset Type: Intel C621
cache Memory:
Installed Size: L3 Cache – 13.75 Mb
Cache Per Processor: 13.75 Mb
ram:
Installed Size: 16 Gb / 1.5 Tb (max)
Technology: Ddr4 Sdram – Advanced Ecc
Effective Memory Speed: 2400 Mhz
Rated Memory Speed: 2933 Mhz
Memory Specification Compliance: Pc4-23466
Form Factor: Dimm 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, Slots 13 – 24 Are Available In Two-processor Configuration Only, 6-channel Memory Architecture
Configuration Features: 1 X 16 Gb
Ram Supported: 3 Tb Load-reduced – Ecc¦ 1.5 Tb Registered – Ecc¦ 192 Gb Non-volatile – Ecc¦ 6 Tb – HPE Persistent Memory – Optane Dc Persistent
hard Drive:
Type: No Hdd
storage Controller:
Type: 1 X Raid – Pcie 3.0 X4
Controller Interface Type: Sata 6gb/s
Storage Controller Name: HPE Smart Array S100isr Software Raid
Channel Qty: 14
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
storage Controller (2nd):
Type: 1 X Raid – Pcie 3.0 X8
Controller Interface Type: Sata 6gb/s / Sas 12gb/s
Storage Controller Name: HPE Smart Array P408i-a Sr Gen10
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
optical Storage:
Type: No Optical Drive
monitor:
Monitor Type: None
graphics Controller:
Video Memory: 16 Mb
Video Interfaces: Vga
networking:
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller: HPE 366flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-out 5
Features: Wake On Lan (wol), Pxe Support
expansion / Connectivity:
Bays: 1 (total) / 1 (free) X External Universal Media Bay¦ 8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots: 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height¦ 1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile¦ 1 (total) / 0 (free) X Flexiblelom¦ 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces: 1 X Vga¦ 4 X Lan (gigabit Ethernet)¦ 1 X HPE Ilo – Rj-45¦ 3 X Usb 3.0 (1 Front, 2 Rear)
miscellaneous:
Included Accessories: HPE Standard Heatsink, Sff Easy Install Rails
Compliant Standards: Aes, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Uefi
power:
Device Type: Power Supply – Hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: Ac 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 Plus Certification: 80 Plus Platinum
dimensions & Weight:
Width: 17.1 In
Depth: 27.8 In
Height: 1.7 In
Weight: 28.75 Lbs
availability: In Stock
condition: New Cto
manufacturer Warranty: Standard
