general Information:
manufacturer: Hewlett Packard Enterprise
manufacturer Part Number: P24841-B21
MANUFACTURER Website Address: WWW.HPE.COM

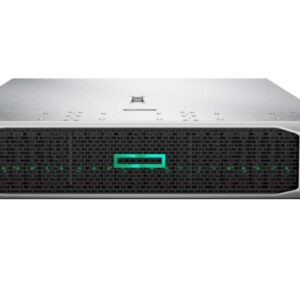

PRODUCT Name: Proliant Dl380 Gen10 – 2u Rack Mountable Server
processor & Chipset:
cpu: Intel Xeon Silver 4210r / 2.4 Ghz
max Turbo Speed: 3.2 Ghz
number Of Cores: 10-core
cpu Qty: 1
max Cpu Qty: 2
cpu Upgradability: Upgradable
processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
cpu Socket: Fclga3647 Socket
chipset Type: Intel C621
cache Memory:
installed Size: L3 Cache – 13.75 Mb
cache Per Processor: 13.75 Mb
memory:
installed Size: 32 Gb / 1.5 Tb (max)
technology: Ddr4 Sdram – Advanced Ecc
effective Memory Speed: 2400 Mhz
rated Memory Speed: 2933 Mhz
form Factor: Dimm 288-pin
slots: 24 (total) / 23 (empty)
features: Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
configuration Features: 1 X 32 Gb
ram Supported: 3 Tb Load-reduced – Ecc, 1.5 Tb Registered – Ecc, 192 Gb Non-volatile – Ecc, 6 Tb – HPE Persistent Memory – Optane Dc Persistent
storage Controllers:
type: 1 X Raid
controller Interface Type: Sata 6gb/s / Sas 12gb/s
storage Controller Name: HPE Smart Array P408i-a
channel Qty: 8
raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
buffer Size: 2 Gb
graphics Controller:
video Memory: 16 Mb
video Interfaces: Vga
network & Communication:
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller: HPE 331i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 5
features: Wake On Lan (wol), Acpi Support, Pxe Support
expansion / Connectivity:
bays: 8 (total) / 8 (free) X Hot-swap 2.5in Sff
slots: 1 (total) / 1 (free) X Microsd Card (internal), 1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height, 1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height, 1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height, 1 (total) / 0 (free) X Flexiblelom
interfaces: 1 X HPE Ilo – Type A (1 In Front), 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal), 1 X HPE Ilo – Rj-45 (1 Rear), 4 X Lan (gigabit Ethernet) – Rj-45 (4 Rear), 1 X Vga (1 Rear)
power Description:
device Type: Power Supply – Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
max Supported Qty: 2
nominal Voltage: Ac 120/230 V (50/60 Hz)
power Provided: 800 Watt
80 Plus Certification: 80 Plus Platinum
dimensions & Weight:
width: 17.5 In
depth: 26.7 In
height: 3.4 In
weight: 32.85 Lbs
condition: New Cto
availability: In Stock
mfg Warranty: Standard
