General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P40402-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height (rack Units) : 1u

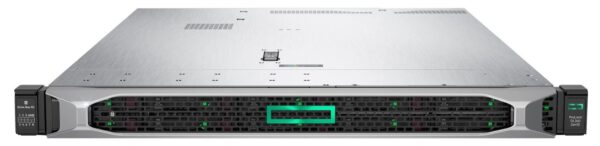

Product Name : Proliant Dl360 Gen10 – Rack Mountable Server ( Networking Choice Model)
Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 6242 / 2.8 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Nstalled Size : L3 Cache – 22 Mb
Cache Per Processor : 22 Mb
Ram :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Slots 13 – 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced – Ecc 1.5 Tb Registered – Ecc 192 Gb Non-volatile – Ecc
Hard Drive :
Type : No Hdd
Storage Controllers:
Type : Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Optical Storage :
Type: No Optical Drive
Monitor :
Monitor Type : None
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication :
Ethernet Ports : 2 X 10/25 Gigabit Ethernet Sfp28
Ethernet Controller : Broadcom Bcm57414
Data Link Protocol : 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 1 (free) X Flexiblelom – Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 – Full-height
Interfaces :
1 X HPE Ilo – Type A (1 In Front)
1 X HPE Ilo – Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
2 X Lan (10/25 Gigabit Ethernet) (sfp28)
Miscellaneous :
Included Accessories : HPE High Performance Heatsink, 5 X Standard Fans, Sff Easy Install Rails
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% (non-condensing)
Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
