General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P40422-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height (rack Units) : 2u

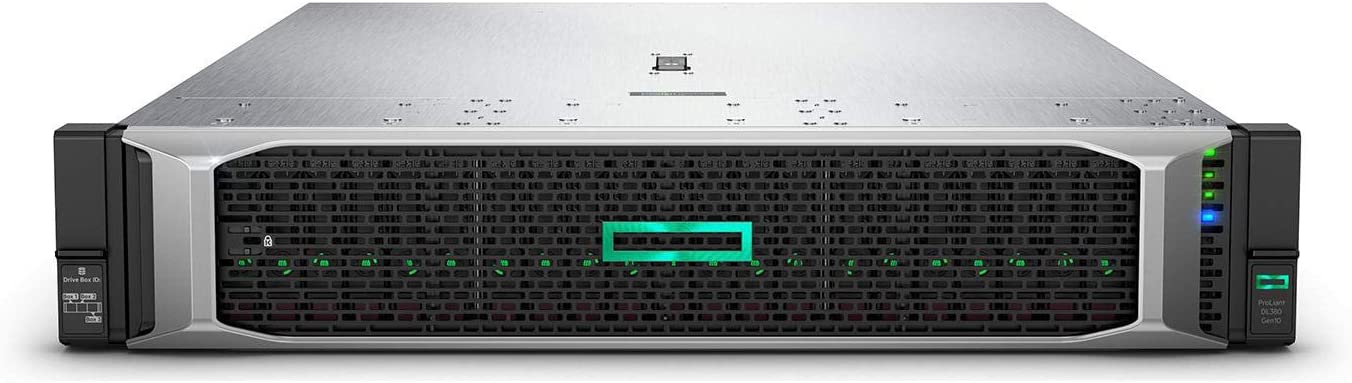

Product Name : HPE Proliant Dl380 Gen10 5222 3.8ghz 4c 1p 32gb-r S100i Nc 8sff 800w Ps Server ( Smb Networking Choice Model)
Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 5222 / 3.8 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : Quad-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 16.5 Mb
Cache Per Processor : 16.5 Mb
Ram :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced – Ecc 1.5 Tb Registered – Ecc 192 Gb Non-volatile – Ecc
Hard Drive :
Type : No Hdd
Storage Controllers :
Type : 1 X Sata – Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Optical Storage :
Type: No Optical Drive
Card Reader :
Type : Card Reader
Supported Flash Memory Cards : Microsd
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication :
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57414
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 0 (free) X Flexiblelom
Interfaces & Ports :
3 X Usb 3.0 (1 Front, 2 Rear)
1 X Vga
2 X Lan (10gigabit Ethernet)
1 X HPE Ilo
1 X HPE Ilo (service Port)
Miscellaneous :
Included Accessories :
Cable Management Arm
4 Standard Fans
Sff Easy Install Rails
Compliant Standards :
Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
Operating System / Software :
Os Provided :
No Operating System
Os Certified :
Centos
Microsoft Windows Server 2012 R2
Vmware Vsphere 6.0 (esxi)
Suse Linux Enterprise Server 11 Sp4
Microsoft Windows Server 2016
Red Hat Enterprise Linux 7.3
Red Hat Enterprise Linux 6.9
Vmware Vsphere 6.5
Suse Linux Enterprise Server 12 Sp2
Clearos
Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% (non-condensing)
Dimensions & Weight :
Width : 17.5 In
Depth : 26.7 In
Heigh : 3.4 In
Weight : 32.85 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
