General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P40425-B21
Manufacturer Website Address : WWW.HPE.COM

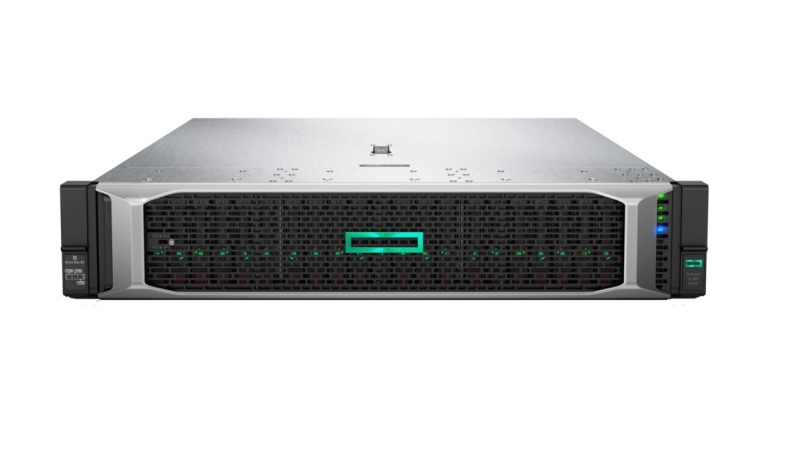

Product Name : Proliant Dl380 Gen10 – 2u Rack Mountable Server ( Nc Model)
Server Scalability : 2-way
Processor & Chipset :
Cpu : Intel Xeon Silver 4215r / 3.2 Ghz
Max Turbo Speed : 4 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621
Cache Memory :
Installed Size : L3 Cache – 11 Mb
Cache Per Processor : 11 Mb
Memory :
Installed Size : 32 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 23 (empty)
Features : Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Ram Supported : 3 Tb Load-reduced – Ecc 1.5 Tb Registered – Ecc 192 Gb Non-volatile – Ecc
Storage:
Hard Drive : None
Optical Drive : None
Storage Controllers:
Type : 1 X Raid – Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Ethernet Ports : 2 X 10 Gigabit Ethernet
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 0 (free) X Flexiblelom
Interfaces :
1 X HPE Ilo – Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X HPE Ilo – Rj-45
2 X Lan (10gigabit Ethernet) (sfp+)
1 X Vga
Miscellaneous :
Cable Management Arm
4 Standard Fans
Sff Easy Install Rails
Compliant Standards :
Aes, Tls V1.2, Low Halogen, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.5 In
Depth : 28.8 In
Height : 3.4 In
Weight : 32.54 Lbs
Availability : In Stock
Condition : New Cto
Manufacturer Warranty : Full
Our Warranty : 90 Days
