General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P43357-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height ( Rack Units) : 2u

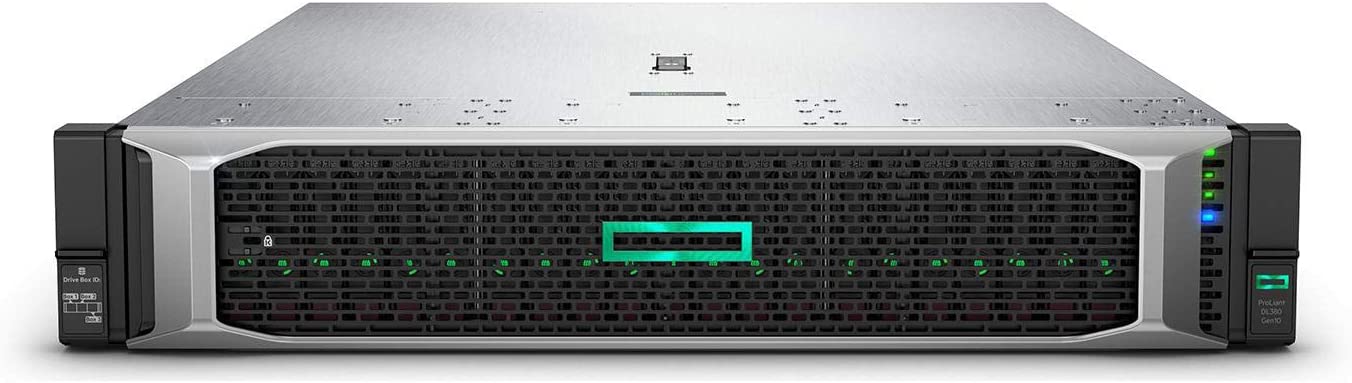

Product Name : HPE Proliant Dl380 Gen10 Plus 5315y 3.2ghz 8-core 1p 32gb-r P408i-a Nc Bcm57412 8sff 800w Ps Server ( Networking Choice Model)
Processor & Chipset :
Cpu : Intel Xeon Gold 5315y / 3.2 Ghz
Max Turbo Speed : 3.6 Ghz
Type : Xeon Gold
Generation : 3rd Gen
Model : 5315y
Core : Octa-core (8 Core)
Installed Quantity : 1
Supported Quantity : 2
Upgradability : Upgradable
Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Socket : Fclga4189 Socket
Chipset Model : C620a
Cache Memory :
Installed Size : L3 Cache – 12 Mb
Cache Per Processor : 12 Mb
Ram :
Installed Size : 32 Gb / 2 Tb ( Max)
Technology : Ddr4 Sdram – Advanced Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 3200 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 31 ( Empty)
Features : Registered, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 – 32 Are Available In Two-processor Configuration Only
Configuration Features : 1 X 32 Gb
Ram Supported : 8 Tb Load-reduced , 2 Tb Registered , 8 Tb – HPE Persistent Memory – Optane Dc Persistent
Hard Drive :
Type : No Hdd
Storage Controllers :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a Sr Gen10
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb
Optical Storage :
Type: No Optical Drive
Monitor :
Monitor Type : None
Graphics Controller :
Graphics Memory Capacity : Up To 16 Mb
Graphics Memory Accessibility : Shared
Graphics Memory Technology : Ddr4 Sdram
Network & Communication :
Interface ( Bus) Type : Open Compute Project Mezzanine ( Ocp) 3.0
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57412
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Expansion / Connectivity :
Expansion Bays Total ( Free) :
8 ( Total) / 8 ( Free) X Hot-swap 2.5 Sff
Expansion Slots Total ( Free) :
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 – Full-length, Full-height
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 – Half-length, Full-height (x8 Mode)
1 ( Total) / 1 ( Free) X Pcie 4.0 X16 – Full-length, Full-height (x8 Mode)
Interfaces & Ports :
1 X HPE Ilo – Rj-45
1 X Usb 3.0
1 X HPE Ilo (service Port)
2 X Lan (10gigabit Ethernet) – Sfp+
1 X Vga
Miscellaneous :
Included Accessories : 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With Cma
Compliant Standards : Aes, Fips 140-2, Weee, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 ( With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V (50/60 Hz)
Plug/connector Type : C13/c14
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Environmental Standards :
Energy Star Certified : Yes
Energy Star Version : 3.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% (non-condensing)
Dimensions & Weight :
Width : 17.5 In
Depth : 28 In
Height : 3.4 In
Weight : 35.54 Lbs
Condition : New Cto Build
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
