General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P52562-B21
Manufacturer Website Address : WWW.HPE.COM
Product Form Factor : Rack-mountable – 2u
Height ( Rack Units) : 2u
Hot-swap Bays Qty : 12

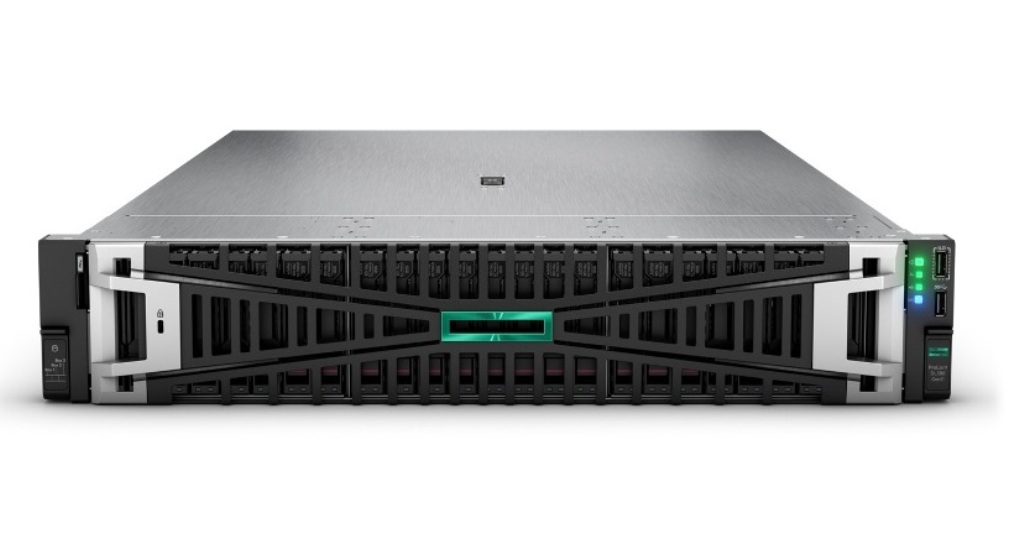

Product Name : HPE Proliant Dl380 Gen11 4410y 2.0ghz 12-core 1p 32gb-r Nc 12lff 800w Ps Server ( Bto Model)
Processor & Chipset :
Processor Name : Intel Xeon Silver 4410y
Processor Clock Speed : 2.0 Ghz
Max Turbo Frequency : 3.9 Ghz
Multi-core Technology : 12-core
Processor Installed Qty : 1
Max Processor Qty : 2
Chipset Model : C741
Cpu Socket : Fclga4677 Socket
Processor Upgradability : Upgradable
Processor Main Features : Intel Quickassist Technology (qat), Intel Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory :
Memory Type : Smart Cache
Memory Installed Size : 30 Mb
Cache Per Processor : 30 Mb
Memory :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 32 Gb / 8 Tb ( Max)
Technology : Advanced Ecc
Effective Memory Speed : 4000 Mhz
Rated Memory Speed : 4800 Mhz
Dimm Rank : Dual Rank (2r)
Form Factor : Dimm 288-pin
Configuration Features : 1 X 32 Gb
Slots : 32 ( Total) / 31 ( Empty)
Features : Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, 16 Dimm Slots Per Processor, 8 Channels Per Processor, 2 Dimms Per Channel
Internal Storage Devices :
Hdd / Ssd : None Ship As Standard
Optical Drive : Available As An Option ( Dvd-rom Or Dvd-rw)
Storage Controller :
Name : Embedded Intel Vroc Sata For HPE Proliant Gen11, With 14 Sata Ports (12-ports Accessible)
Controller Type : Serial Ata
Controller Model : Intel Vroc
Raid Supported : Yes
Raid Levels : 0, 1, 5, 10
Graphics :
Video Interfaces : Vga
Video Memory : 16 Mb
Video Mode : Up To 1920 X 1200@60hz (32 Bpp)
Network & Communication:
Name : Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter
Card Type/profile : Ocp 3.0
Asic/chip : Broadcom Bcm5719
Pcie Version : Pcie 2.0 X4
Auto Negotiation : 1gbe/100mb/1mb
Power Requirement : 4.69w
Expansion / Connectivity :
Bays :
12 ( Total) / 12 ( Free) X Hot-swap 3.5 Lff
Slots :
2 (total) / 2 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 5.0 X16 – Half-length, Full-height (x8 Mode)
Interfaces :
1 X Vga (1 Rear)
1 X HPE Ilo – Rj-45 (1 Rear)
4 X Usb 3.0 (2 Rear, 2 Internal)
2 X Lan (gigabit Ethernet) – Rj-45
1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)
Miscellaneous :
Included Accessories : Cpu Standard Heatsink, 4 X Standard Fans, HPE Easy Install Rails, Cable Management Arm
Embedded Management : HPE Ilo 6, Uefi, Openbmc Support, Intelligent Provisioning, Lo Restful Api, HPE Greenlake
Energy Star : Energy Star 3.0
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1 (1x Platinum)
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
Efficiency : Platinum 94%
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.64 In
Depth : 28.84 In
Height : 3.44 In
Weight : 39.68 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
