General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P53570-001
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Product Form Factor : Tower – 4u
Hot-swap Bays Qty : 8

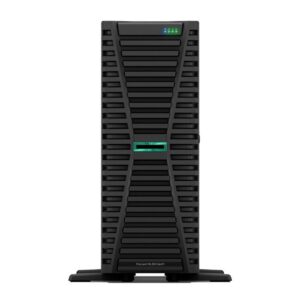

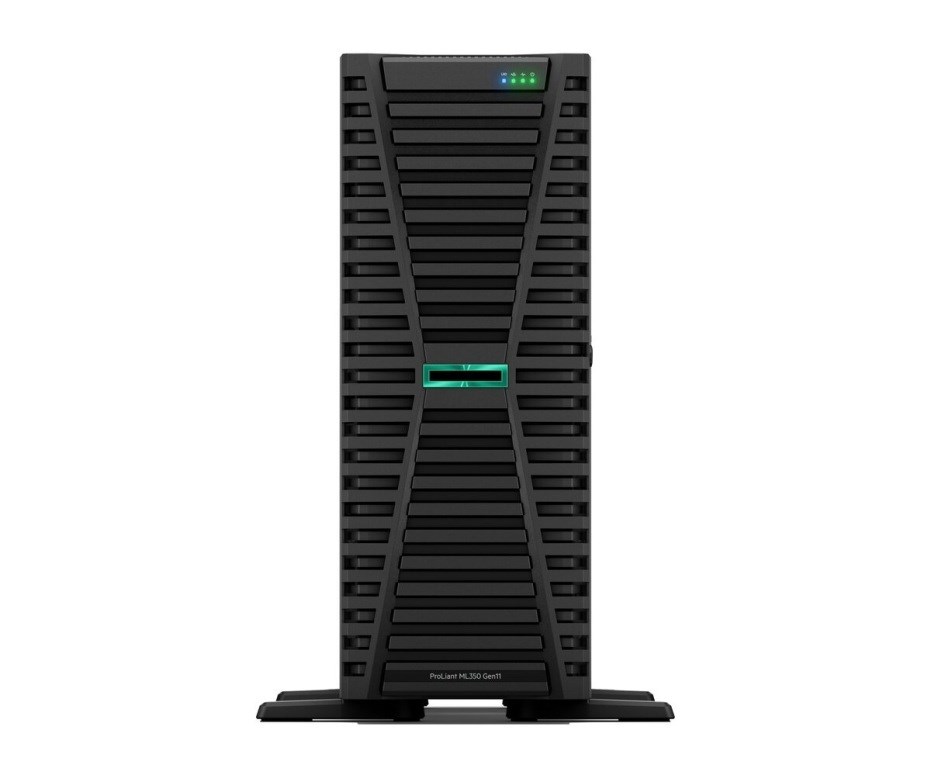

Product Name : HPE Proliant Ml350 Gen11 5418y 2.0ghz 24-core 1p 32gb-r Mr408i-o 8sff 800w Rps Server ( Higher Performance Sff Model)
Processor & Chipset :
Processor Name : Intel Xeon Gold 5418y
Processor Clock Speed : 2.0 Ghz
Max Turbo Frequency : 3.8 Ghz
Multi-core Technology : 24-core
Processor Installed Qty : 1
Max Processor Qty : 2
Chipset Model : C741
Cpu Socket : Fclga4677 Socket
Processor Upgradability : Upgradable
Processor Main Features : Intel Quickassist Technology (qat), Intel Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory :
Memory Type : Smart Cache
Memory Installed Size : 45 Mb
Cache Per Processor : 45 Mb
Memory :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 32 Gb / 8 Tb ( Max)
Technology : Advanced Ecc
Effective Memory Speed : 4400 Mhz
Rated Memory Speed : 4800 Mhz
Dimm Rank : Dual Rank (2r)
Form Factor : Dimm 288-pin
Configuration Features : 1 X 32 Gb
Slots : 32 ( Total) / 31 ( Empty)
Features : Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, Slots 17 – 32 Are Available In Two-processor Configuration Only
Internal Storage Devices :
Hdd / Ssd : None Ship As Standard
Optical Drive : Available As An Option ( Dvd-rom Or Dvd-rw)
Storage Controller :
Name : HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller
Ports : 1×8 Lp Slimsas
Storage Lanes : 8
Form Factor : Ocp Nic 3.0
Host Interface : Pcie Gen 4.0 X8 Host
Storage Protocol : 16gbs Nvme, 12gbs Sas, 6gbs Sata
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Cache Size : 4 Gb
Graphics :
Video Interfaces : Vga
Video Memory : 16 Mb
Video Mode : Up To 1920 X 1200@60hz (32 Bpp)
Network & Communication:
Name : Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter
Card Type/profile : Ocp 3.0
Asic/chip : Broadcom Bcm5719
Pcie Version : Pcie 2.0 X4
Auto Negotiation : 1gbe/100mb/1mb
Power Requirement : 4.69w
Expansion / Connectivity :
Bays :
8 ( Total) / 8 ( Free) X Hot-swap 2.5 Sff
Slots :
4 ( Total) / 4 ( Free) X Pcie 5.0 X8 – Full-length, Full-height
2 ( Total) / 2 ( Free) X Pcie 5.0 X16 – Full-length, Full-height
1 ( Total) / 1 ( Free) X Pcie 5.0 X8 – Half-height, Half-length
1 ( Total) / 1 ( Free) X Microsd Card (internal)
Interfaces :
1 X Serial (1 Rear)
1 X Vga (1 Rear)
1 X Usb 2.0 (1 Internal)
1 X Display Port (1 Front)
1 X HPE Ilo – Rj-45 (1 Rear)
1 X HPE Ilo – Type A (1 In Front)
4 X Usb 3.2 (1 Front, 2 Rear, 1 Internal)
4 X Lan ( Gigabit Ethernet) – Rj-45 (4 Rear)
Miscellaneous :
Included Accessories : Cpu Standard Heatsink, 8 X Standard Fans, Sff Easy Install Rails
Compliant Standards : Aes, Acpi 6.1, Pcie 5.0, Wol, Pxe, Usb 3.2 Gen1, Usb 2.0, Ocp 3.0 Sff Nic, Ocp 3.0 Sff Storage, Smbios 3.1, Uefi 2.7, Uefi Class 3, Ipmi 2.0, 3des
Embedded Management : HPE Ilo, Intelligent Provisioning, Ilo Restful Api, HPE Greenlake
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 6.85 In
Depth : 28 In
Height : 18.2 In
Weight : 54.52 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
