General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P55243-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height ( Rack Units) : 1u
Hot-swap Bays Qty : 8

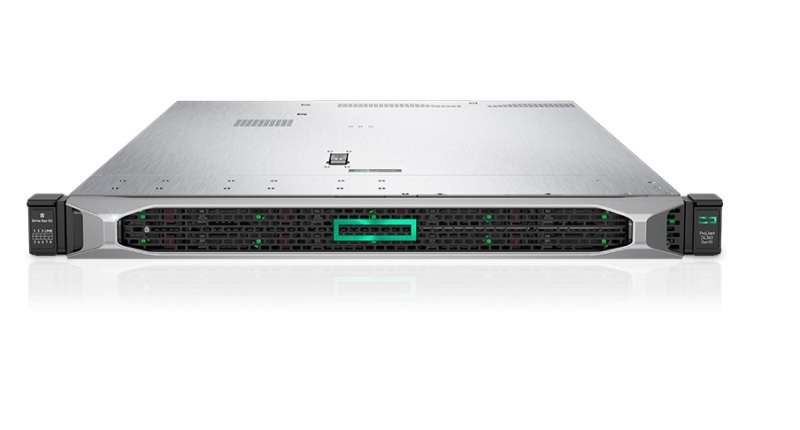

Product Name : HPE Proliant Dl360 Gen10 Plus 5315y 3.2ghz 8-core 1p 32gb-r Mr416i-a Nc 8sff 800w Ps Server ( Pre-configured Model)
Processor & Chipset :
Cpu : Intel Xeon Gold 5315y
Clock Speed : 3.2 Ghz
Max Turbo Speed : 3.6 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga4189 Socket
Chipset Type : Intel C621a
Cache Memory :
Installed Size : L3 Cache – 12 Mb
Cache Per Processor : 12 Mb
Memory :
Installed Size : 32 Gb / 4 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 3200 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 31 (empty)
Features : Registered, Dual Rank, HPE Smartmemory
Configuration Features : 1 X 32 Gb
Storage & Storage Controller :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s / Pcie 4.0 (nvme)
Storage Controller Name : HPE Smart Array Mr416i-a
Channel Qty : 16
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication :
Interface ( Bus) Type : Open Compute Project Mezzanine ( Ocp) 3.0
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57416
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Protocol : Integrated Lights-out 5
Features : Wake On Lan ( Wol), Pxe Support
Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
1 (total) / 1 (free) X Pcie 4.0 X16 – Full-height (x16 Mode)
1 (total) / 1 (free) X Pcie 4.0 X16 – Low-profile (x16 Mode)
Interfaces :
3 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X HPE Ilo (1 In Front) (service Port)
1 X Usb 2.0 (1 In Front)
1 X Vga
1 X HPE Ilo
2 X Lan (10gigabit Ethernet)
Miscellaneous :
Included Accessories : HPE Easy Install Rails, Cpu Standard Heatsink, 7 X High Performance Fans, 31 X Dimm Blankss
Compliant Standards : Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
