General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P55244-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height ( Rack Units) : 2u

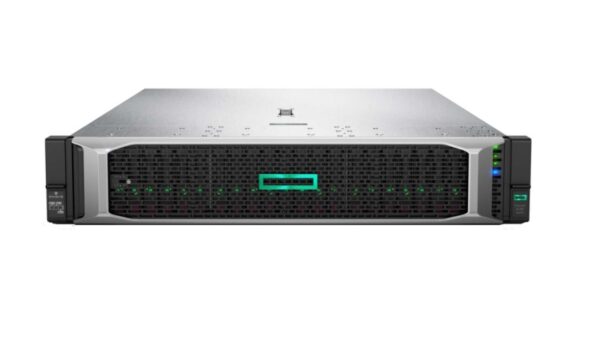

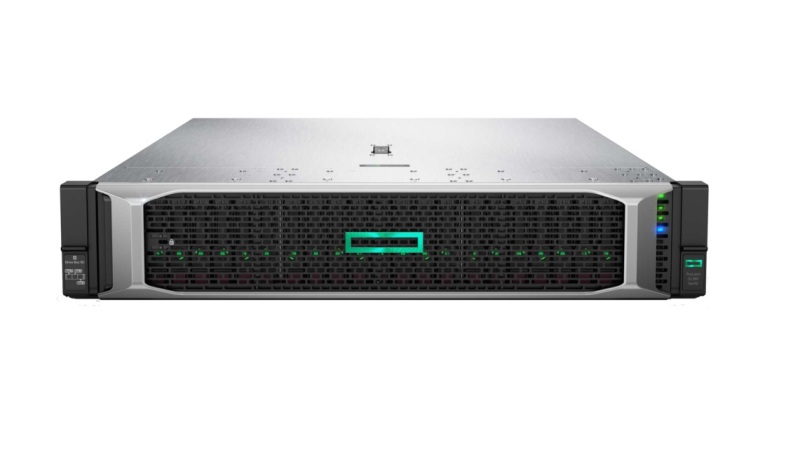

Product Name : Dl380 G10+ 4309y 1p 32g S100i 8sff Nc Svr ( Pre-configured Model)
Processor & Chipset :
Cpu : Intel Xeon Silver 4309y
Clock Speed : 2.8 Ghz
Max Turbo Speed : 3.6 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel C621a
Cache Memory :
Installed Size : L3 Cache – 12 Mb
Cache Per Processor : 12 Mb
Memory :
Installed Size : 32 Gb / 2 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 3200 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 31 (empty)
Features : Registered, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 – 32 Are Available In Two-processor Configuration Only
Configuration Features : 1 X 32 Gb
Ram Supported : 8 Tb Load-reduced , 2 Tb Registered , 8 Tb – HPE Persistent Memory – Optane Dc Persistent
Hard Drive :
Type : No Hdd
Storage Controllers:
Type : 1 X Raid – Pcie 3.0 X4
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 14
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Network & Communication:
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57412
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 5
Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
1 (total) / 1 (free) X Pcie 4.0 X16 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 4.0 X16 – Half-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 4.0 X16 – Full-length, Full-height (x8 Mode)
Interfaces :
1 X HPE Ilo – Rj-45
3 X Usb 3.0 (1 Front, 2 Rear)
1 X HPE Ilo (service Port)
2 X Lan (10gigabit Ethernet) – Sfp+
1 X Vga
Miscellaneous :
Included Accessories : 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With Cma
Compliant Standards : Aes, Fips 140-2, Weee, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.54 In
Depth : 28 In
Height : 3.44 In
Weight : 35.54 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
