General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P55535-001
Manufacturer Website Address : WWW.HPE.COM
Product Form Factor : Tower – 4.5 U
Server Scalability : 1-way
Hot-swap Bays Qty : 8

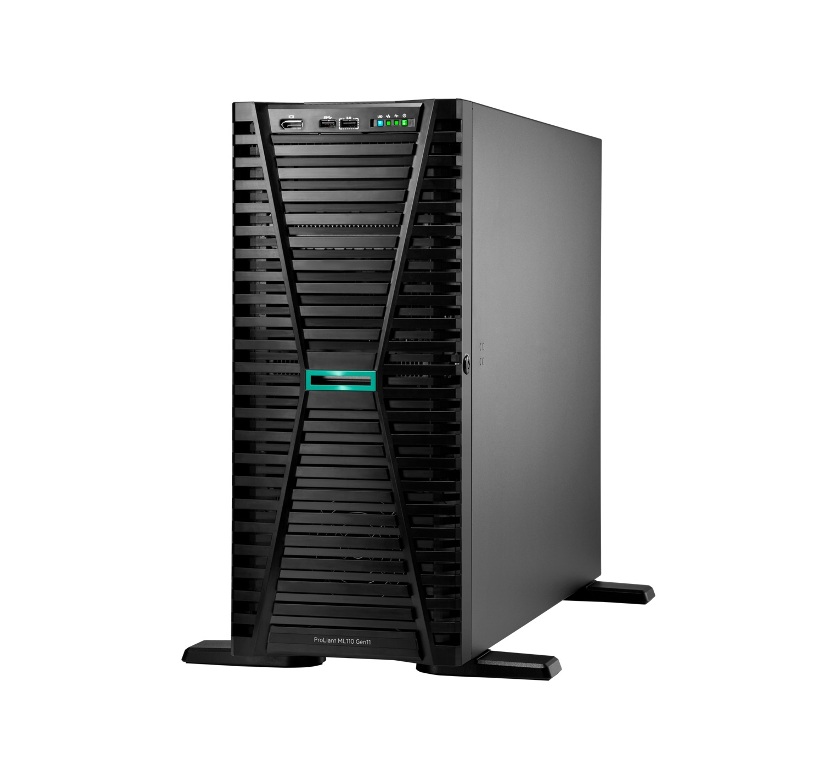

Product Name : HPE Proliant Ml110 Gen11 3408u 1.8ghz 8-core 1p 32gb-r Vroc 8sff 800w Rps Server ( Base Sff Model)
Processor & Chipset :
Processor Name : Intel Xeon Bronze 3408u
Processor Clock Speed : 1.8 Ghz
Max Turbo Frequency : 1.9 Ghz
Multi-core Technology : 8-core
Processor Installed Qty : 1
Max Processor Qty : 1
Chipset Model : C741
Cpu Socket : Fclga4677 Socket
Processor Upgradability : Upgradable
Processor Main Features : Intel Quickassist Technology (qat), Intel Hyper-threading Technology, Intel Turbo Boost Technology 2
Cache Memory :
Memory Type : Smart Cache
Memory Installed Size : 22.5 Mb
Cache Per Processor : 22.5 Mb
Memory :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 32 Gb / 1 Tb ( Max)
Technology : Advanced Ecc
Effective Memory Speed : 4000 Mhz
Rated Memory Speed : 4800 Mhz
Dimm Rank : Dual Rank (2r)
Form Factor : Dimm 288-pin
Configuration Features : 1 X 32 Gb
Slots : 16 ( Total) / 15 ( Empty)
Features : Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, 16 Dimm Slots Per Processor, 8 Channels Per Processor, 2 Dimms Per Channel
Internal Storage Devices :
Hdd / Ssd : None Ship As Standard
Optical Drive : Available As An Option ( Dvd-rom Or Dvd-rw)
Storage Controller :
Name : Embedded 8 Sata Ports Controller With Intel Vroc Software Raid.
Controller Interface Type : Sata 6gb/s
Controller Model : Intel Vroc
Channel Qty : 8
Raid Supported : Yes
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Graphics :
Video Interfaces : Vga
Video Memory : 16 Mb
Video Mode : Up To 1920 X 1200@60hz (32 Bpp)
Network & Communication:
Name : Embedded 2-port 1gbe Bcm5720 Networking Ports
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5720
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External 5.25
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
2 (total) / 2 (free) X Pcie 5.0 X16
1 (total) / 1 (free) X Pcie 5.0 X16 / Open Compute Project Mezzanine (ocp) 3.0 (x16 Mode)
Interfaces :
1 X Vga
2 X Lan (gigabit Ethernet)
1 X HPE Ilo – Rj-45 (1 Rear)
3 X Usb 3.0 (1 Front, 2 Rear)
1 X HPE Ilo – Type A (1 In Front)
Miscellaneous :
Included Accessories : HPE Standard Heatsink, 2 Non-hot Plug Standard Fans
Compliant Standards : Weee, Pcie 5, Ashrae Class A3, Acpi 6.4
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1 (1x Platinum)
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
Efficiency : Platinum 94%
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 7.68 In
Depth : 23.1 In
Height : 18.19 In
Weight : 44.31 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
