General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P56949-B21
Manufacturer Website Address : WWW.HPE.COM
Server Scalability : 2-way
Height ( Rack Units) : 1u
Hot-swap Bays Qty : 8

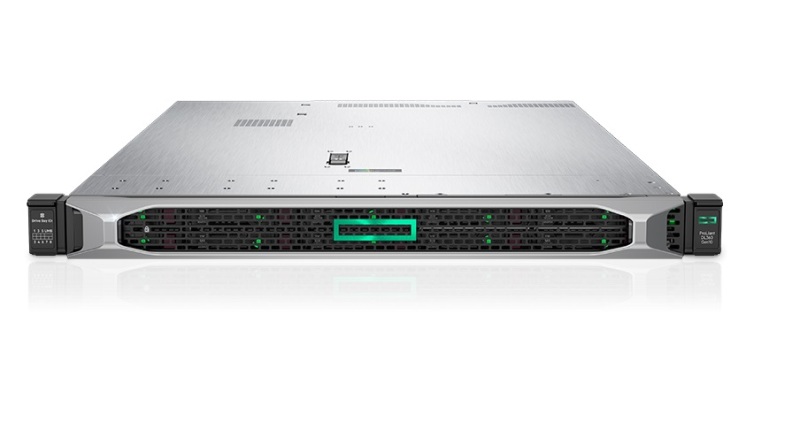

Product Name : HPE Dl360 Gen10 8sff Bc Nc Cto Server ( Cto Model)
Processor & Chipset :
Cpu : No Cpu
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Cpu Socket : Socket P
Chipset Type : Intel C621
Ram :
Installed Size : 0 Gb / 3 Tb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Ram Supported : Pc4-20800 – 3.072 Tb Load-reduced Pc4-20800 – 768 Gb Registered Pc4-20800 – 192 Gb Non-volatile
Storage Controller :
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software
Channel Qty : 14
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Networking :
Ethernet Ports : 4 X Gigabit Ethernet
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
24 (total) / 24 (free) X Dimm 288-pin
2 (total) / 2 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
1 (total) / 1 (free) X Flexiblelom – Three-quarter-length, Full-height (low-profile) 1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 – Full-height
Interfaces & Ports :
1 X Hp Ilo – Type A (1 In Front)
1 X Hp Ilo – Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) – Rj-45 (4 Rear)
Power :
Device Type : Power Supply – Hot-plug / Redundant
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days
