general Information:
product Type: Server
manufacturer Part Number: P60637-B21
MANUFACTURER Website Address: HTTP://WWW.HPE.COM
MANUFACTURER: Hewlett Packard Enterprise

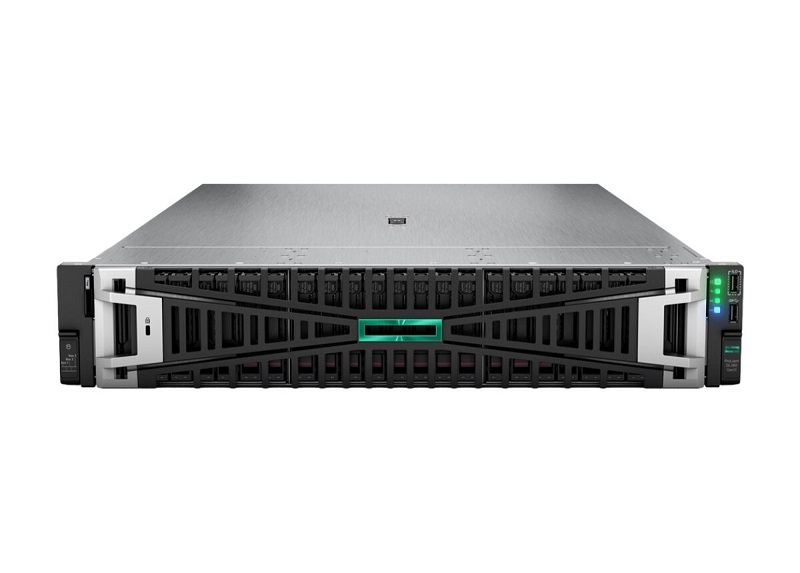

product Name: Proliant Dl380 G11 Server
product Line: Proliant
product Series: Dl380 G11
product Form Factor: Rack-mountable – 2u
brand Name: HPE
PROCESSOR / Chipset:
cpu: Intel Xeon Gold 6426y
clock Speed: 2.5 Ghz
max Turbo Speed: 4.1 Ghz
number Of Cores: 16-core
cpu Qty: 1
max Cpu Qty: 2
cpu Upgradability: Upgradable
processor Main Features: Intel Turbo Boost Technology
chipset Type: Intel C741
cache Memory:
installed Size: L3 Cache – 37.5mb
cache Per Processor: 37.5mb
ram:
installed Size: 32gb / 8tb (max)
technology: Ddr5 Sdram
effective Memory Speed: 4400 Mhz
rated Memory Speed: 4800 Mhz
form Factor: Dimm 288-pin
slots: 32 (total) / 31 (empty)
features: Registered, HPE Smartmemory, Slots 17 – 32 Are Available In Two-processor Configuration Only
configuration Features: 1 X 32 Gb
hard Drive:
type: No Hdd
storage Controller:
type: 1 X Raid – Pcie 4.0 X8
controller Interface Type: Sata 6gb/s / Sas 12gb/s / Pcie
storage Controller Name: HPE Smart Array Mr408i-o
channel Qty: 8
raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
buffer Size: 4 Gb
optical Storage:
type: No Optical Drive
monitor:
monitor Type: None
graphics Controller:
video Memory: 16 Mb
video Interfaces: Vga
networking:
ethernet Ports: 2 X Gigabit Ethernet
ethernet Controller: Broadcom Bcm57416
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 6
features: Wake On Lan (wol), Pxe Support
compliant Standards: Ocp 3.0
expansion / Connectivity:
bays: 1 (total) / 1 (free) X External Universal Media Bay ¦ 8 (total) / 8 (free) X Hot-swap 2.5 Sff
slots: 2 (total) / 2 (free) X Flexiblelom ¦ 1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height ¦ 1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height (x8 Mode) ¦ 1 (total) / 1 (free) X Pcie 5.0 X16 – Half-length, Full-height (x8 Mode)
interfaces: 1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port) ¦ 4 X Usb 3.0 (2 Rear, 2 Internal) ¦ 1 X HPE Ilo – Rj-45 (1 Rear) ¦ 1 X Vga (1 Rear) ¦ 2 X Lan (gigabit Ethernet) – Rj-45
miscellaneous:
included Accessories: Cable Management Arm, HPE Easy Install Rails, 4 Standard Fans
compliant Standards: Aes, Fips 140-2, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.3, Erp Lot 9
power:
device Type: Power Supply – Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
max Supported Qty: 2
voltage Required: Ac 100/240 V
power Provided: 800 Watt
80 Plus Certification: 80 Plus Platinum
operating System / Software:
os Provided: No Operating System
os Certified: Microsoft Windows Server, Red Hat Enterprise Linux, Vmware Esxi, Oracle Linux, Canonical Ubuntu, Citrix
software: HPE Server Uefi
sustainability Information:
energy Star Certified: Yes
energy Star Version: 3.0
dimensions & Weight:
width: 17.6 In
depth: 28.6 In
height: 3.4 In
weight: 35.27 Lbs
availability: Call
condition: Brand New
mfg Warranty: Standard
