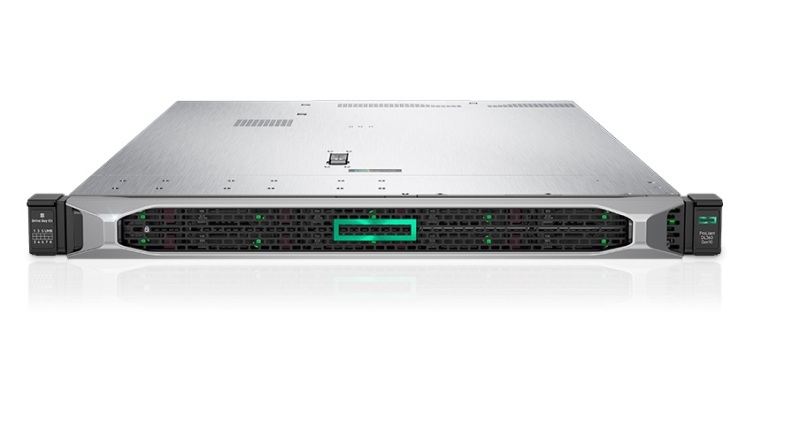

HPE P69749-005 Proliant Dl360 Gen10 Plus Smart Choice Model – 3rd Gen 1x Intel Xeon 16-core Silver 4314 / 2.4 Ghz, 128(4×32)gb Ddr4 Sdram, Broadcom Bcm57416 Eth 10gb 2-port Base-t Ocp3 Adapter, Smart Array Mr416i-a Gen10 Plus X16 Lanes 4gb Cache Nvme/sas 12g Controller, 2x 480gb Sata Ssd, 8sff, 2x 800w Fs Ps 1u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P69749-005
Type : Server – Rack-mountable
Height ( Rack Units) : 1u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl360 Gen10 Plus 4314 2.4ghz 16-core 1p 128gb-r Mr416i-a Nc 8sff 800w Ps Server (smart Choice Model)
Processor / Chipset :
Cpu : Intel Xeon Silver 4314
Clock Speed : 2.4 Ghz
Max Turbo Speed : 3.4 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology
Chipset Type : Intel C621a
Cache Memory :
Installed Size : L3 Cache – 24 Mb
Cache Per Processor : 24 Mb
Ram :
Installed Size : 128 Gb
Technology : Ddr4 Sdram
Effective Memory Speed : 2667 Mhz
Rated Memory Speed : 3200 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 28 (empty)
Features : HPE Smartmemory, Slots 17 – 32 Are Available In Two-processor Configuration Only
Configuration Features : 4 X 32 Gb
Internal Storage Devices :
Hdd / Ssd :
Type : Ssd – 2.5
Capacity : 2 X 480 Gb
Interface Type : Sata
Optical Drive : No Optical Drive
Storage Controller :
Type : 1 X Raid
Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)
Storage Controller Name : Broadcom Megaraid Mr416i-a
Channel Qty : 16
Buffer Size : 4 Gb
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Broadcom Bcm57416
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
Miscellaneous :
Included Accessories : Cpu Standard Heatsink, 5 X Standard Fans, Sff Easy Install Rail Kit
Compliant Standards : Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Acpi 6.3, Smbios 3.2, Active Directory V1.0
Manufacturer Selling Program : HPE Smart Choice
Power :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Software : HPE Server Uefi
Sustainability Information :
Energy Star Certified : Yes
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.1 In
Depth : 29.2 In
Height : 1.7 In
Weight : 29.3 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
