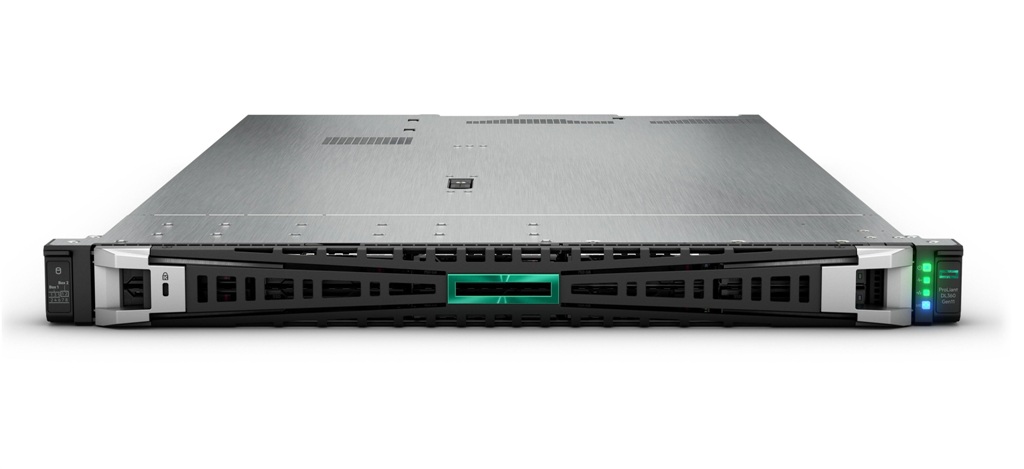

HPE P72992-005 Proliant Dl360 Gen11 Smart Choice Model – 5th Gen 1x 16-core Intel Xeon Silver 4514y / 2.0 Ghz – 128(4×32)gb Ddr5 Sdram – Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter – HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller – 2x 960gb Sata Ssd – 8sff – 2x 1000w Flex Slot Titanium Hot Plug Power Supply – 2-way 1u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P72992-005
Product Form Factor : Rack-mountable – 1u
Height ( Rack Units) : 1u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl360 Gen11 4514y 2.0ghz 16c 128gb-r 8sff Mr408i-o 2x960gb Ssd Nc 2x1000w Rps Na Server
Processor / Chipset :
Cpu : Intel Xeon Gold 4514y
Clock Speed : 2.0 Ghz
Max Turbo Speed : 3.4 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Lga4677 Socket-e
Chipset Type : Intel C741
Cache Memory :
Installed Size : L3 Cache – 30 Mb
Cache Per Processor : 30 Mb
Ram :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 128 Gb / 8 Tb (max)
Technology : Ddr5 Sdram – Advanced Ecc
Effective Memory Speed : 4400 Mhz
Rated Memory Speed : 5600 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 28 (empty)
Features : Registered, Dual Rank, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 – 32 Are Available In Two-processor Configuration Only
Configuration Features: 4 X 32 Gb
Internal Storage Devices :
Hdd / Ssd :
Hard Drive / Type : Ssd
Hard Drive / Size : 2.5
Hard Drive / Interface Type : Serial Ata
Hard Drive Capacity / Ssd : 960 Gb
Ssd / Installed Qty : 2
Total Storage Capacity : 1920gb
Optical Drive : No Optical Drive
Storage Controller :
Type : 1 X Raid – Ocp
Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)
Storage Controller Name : HPE Mr408i-o Gen11 Spdm
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size : 4 Gb
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga
Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ocp 3.0
Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 6 (free) X Hot-swap 2.5 Sff
Slots :
2 (total) / 2 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height
1 (total) / 1 (free) X Pcie 5.0 X16 – Full-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 5.0 X16 – Half-length, Full-height (x8 Mode)
Interfaces :
1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)
4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)
1 X HPE Ilo – Rj-45 (1 Rear)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) – Rj-45
Miscellaneous :
Included Accessories : 5 X Standard Fans, HPE Easy Install Rail 3 Kit Withot Cma
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.4
Pricing Type : Bto
Power :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Os Certified : Vmware Vsphere 6.0 (esxi), Suse Linux Enterprise Server 11 Sp4
Software : HPE Server Uefi
Sustainability Information :
Energy Star Certified : Yes
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% Rh (non-condensing)
Dimensions & Weight :
Width : 17.1 In
Depth : 29.6 In
Height : 1.7 In
Weight : 32.1 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
