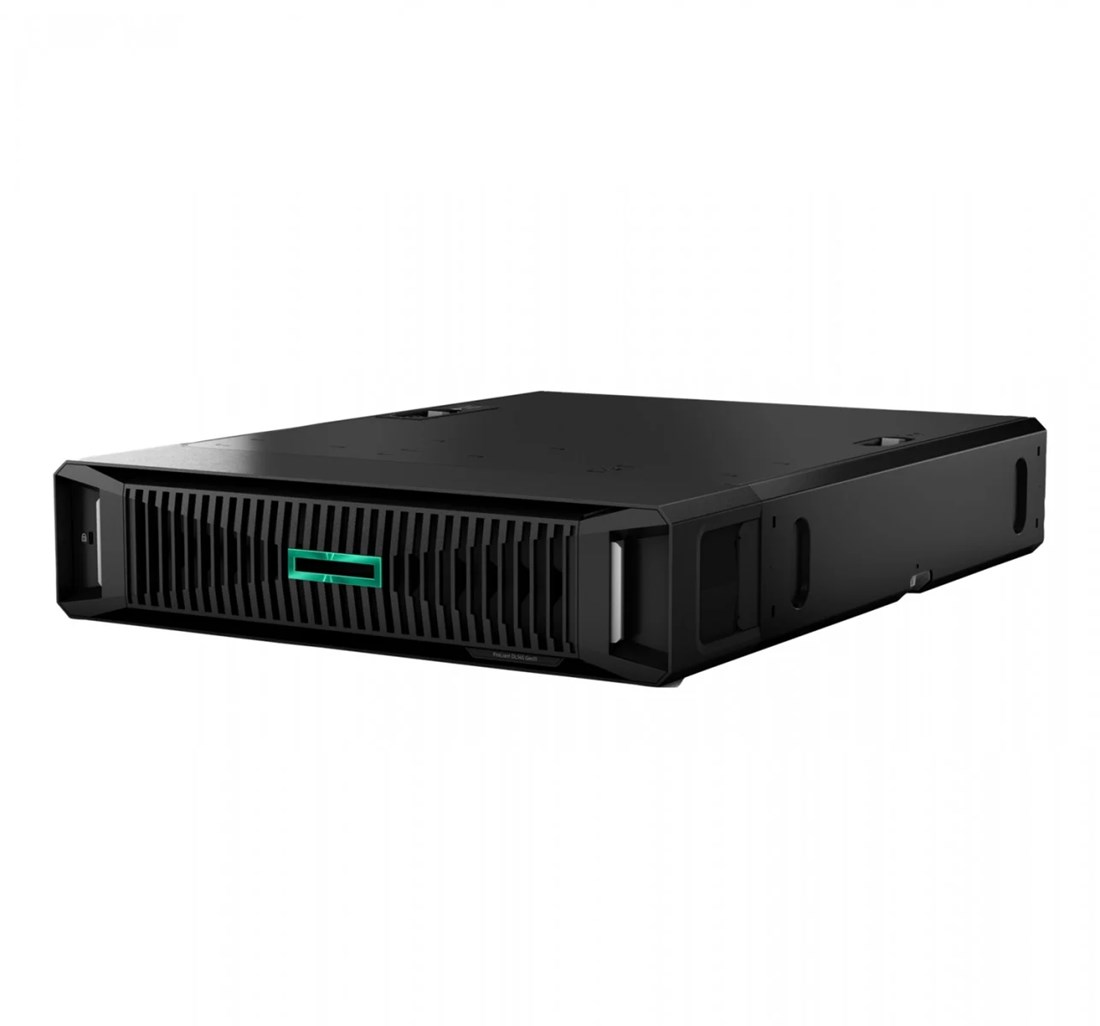

HPE P79810-005 Proliant Dl145 Gen11 Smart Choice Model – 1x 4th Gen Amd Epyc 16-core 8124p / 2.45 Ghz – 64(2×32)gb Ddr5 Sdram Ecc – Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter – HPE Mr216i-p Gen11 X16 Lanes Without Cache Pci Spdm Plug-in Storage Controller HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device – 2 Sff – 2x 700w Flex Slot Platinum Hot Plug Low Halogen Ac Power Supply – 1-way 2u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P79810-005
Type : Server – Rack
Server Scalability : 1-way
Hot-swap Bays Qty : 2
Product Name : HPE Proliant Dl145 Gen11 8124p 2.45ghz 16c 1p 2x32gb-r 2sff Ns204i-u Mr216i-p 2x700w Ps Na Server ( Smart Choice Model)
Processor / Chipset :
Cpu : Amd Epyc 8124p
Clock Speed : 2.45 Ghz
Max Turbo Speed : 3.0 Ghz
Number Of Cores : 16-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Socket : Sp6
Cpu Upgradability : Upgradable
Processor Main Features : Amd Infinity Guard, Amd Infinity Architecture
Cache Memory :
Installed Size : L3 Cache – 64 Mb
Cache Per Processor : 64 Mb
Ram :
Installed Size : 64 Gb (installed) / 768 Gb (max)
Technology : Ddr5 Sdram – Advanced Ecc
Effective Memory Speed : 4800 Mhz
Rated Memory Speed : 4800 Mhz
Slots : 6 (total) / 4 ( Empty)
Features : Registered, Hp Smartmemory
Configuration Features : 2 X 32 Gb
Internal Storage Devices :
Hdd / Ssd : None
Optical Drive : No Optical Drive
Storage Controller :
Storage Controller Name : HPE Mr216i-p Gen11 X16 Lanes Without Cache Pci Spdm Plug-in Storage Controller
Raid Levels : 0,1,10
Form Factor : Pci Hh/hl
Controller Interface Type : Sata 6 Gb/s, Sas 12 Gb/s
Cache Size ( Fbwc) : N/a
Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga, Displayport
Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ocp 3.0
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
1 X Usb 3.2 (1 In Front) (HPE Ilo Service Port)
4 X Usb 3.2 (1 Front, 2 Rear, 1 Internal)
1 X HPE Ilo – Rj-45 (1 Rear)
1 X Vga (1 Front)
4 X Lan (gigabit Ethernet) – Rj-45
Miscellaneous :
Theft/intrusion Protection : Security Lock Slot (cable Lock Sold Separately)
Security Slot Type : Kensington Security Slot
Compliant Standards : Acpi, Fcc Class B Certified, En 61000-3-2, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Weee, Gb 9254, Cns 13438
Miscellaneous :
Included Accessories : 4 X Standard Fans, HPE Easy Install Rail 3 Kit Withot Cma
Pricing Type : Bto
Power :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 700 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Os Certified : Vmware Vsphere 6.0 (esxi), Suse Linux Enterprise Server 11 Sp4
Software : HPE Server Uefi
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 – 90% Rh (non-condensing)
Dimensions & Weight :
Width : 14.14 In
Depth : 16 In
Height : 3.44 In
Weight : 25.09 Lbs
Condition : New Cto Build
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
