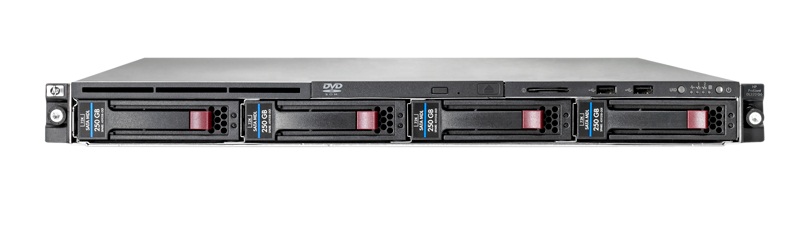

HPE 505768-B21 Proliant Dl320 G6- Cto Chassis- With No Cpu, No Ram, Embedded Nc326i Dual Port Gigabit Server Adapter, Hp Smart Array B110i Sata Raid Controller (raid 0/1/0+1), Ilo-2, 1u Rack Server
General Information :
Manufacturer : HPE
Manufacturer Part Number : 505768-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl320 G6 Rack Server Cto Chassis
Processor & Chipset :
Rocessor Type: No Cpu
Max Supported Qty: 1
Cpu Socket: Lga1366 Socket
Upgradability: Upgradable
Chipset Type : Intel 5520
Data Bus Speed : 800 Mhz
Ram :
Installed Size: 0 Gb
Max Supported Size: 192 Gb
Technology: Ddr3 Sdram
Form Factor: Dimm 240-pin
Storage & Storage Controller :
Hard Drive : None
Optical Drive : None
Storage Controller Type: 1 X Serial Ata – Integrated
Controller Interface Type: Serial Ata-150
Storage Controller Name: Smart Array B110i
Channel Qty: 2
Storage Controller Type(2nd): 1 X Ide – Integrated
Raid Level: Raid 0, Raid 1
Display & Graphics Controller :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 64 Mb Video Standard
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Networking :
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller: Hp Nc326i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-out 2 Standard
Features: Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity :
Expansion Bays Total (free):
4 ( 4 ) X Hot-swap – 3.5in
1 ( 1 ) X Front Accessible – 5.25in Slim Line
Expansion Slots Total (free):
1 ( 1 ) X Pci Express X4 – Half-length, Low-profile ( X1 Mode )
1 ( 1 ) X Pci Express X16 – Full-length ( X16 Mode )
1 ( 1 ) X Processor.
9 ( 9 ) X Memory – Dimm 240-pin
Interfaces :
1 X Keyboard – Generic – 6 Pin Mini-din (ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-din (ps/2 Style)
1 X Serial – Rs-232 – 9 Pin D-sub (db-9)
1 X Display / Video – Vga – 15 Pin Hd D-sub (hd-15)
6 X Hi-speed Usb – 4 Pin Usb Type A ( 2 In Front )
2 X Network – Ethernet 10base-t/100base-tx/1000base-t – Rj-45(2 In Front)
1 X Management – Hp Ilo – Rj-45
Power Supply :
Power Device Type : No Power Supply Installed
Dimension & Weight :
Height : 1.70 In
Width : 17.64 In
Depth : 26.85 In
Weight : 25.6 Lb
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
